Core Automation Architecture of the Ground Screw Production Line
Integrated Forming Equipment and Synchronized Motion Control

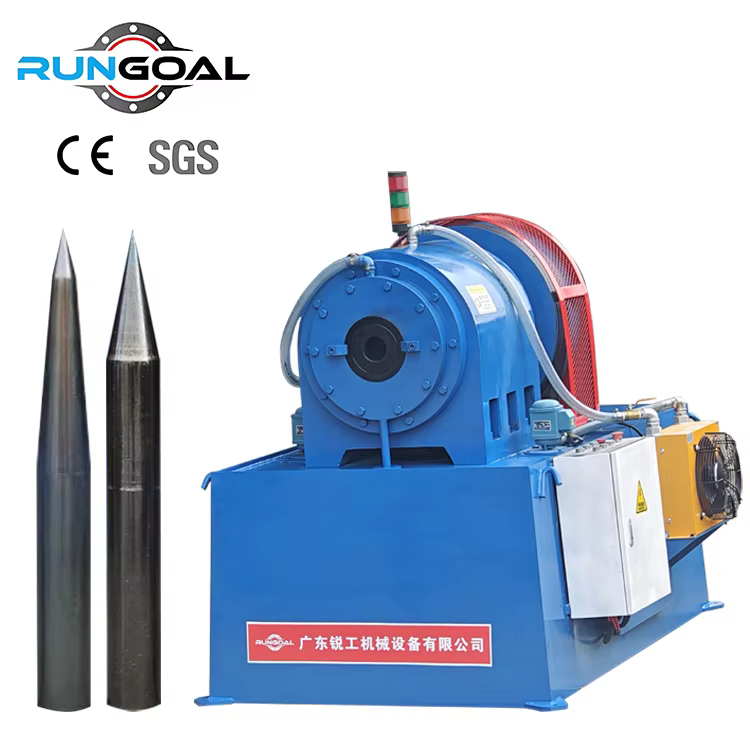

Modern ground screw production lines achieve full automation through integrated forming stations equipped with servo-driven rotary swagers that apply precise radial forces up to 12,000 psi. These stations synchronize with motion control systems via CANopen protocols, enabling micron-level adjustments during helical thread formation. Real-time feedback loops—linking hydraulic presses and optical encoders—maintain dimensional tolerances within ±0.15 mm at a throughput of 120 units/hour. Closed-loop strain monitoring automatically compensates for material variances in steel alloys, reducing thermal deformation risks by 40% compared to semi-automated systems while ensuring consistent pitch geometry across batches.
Key Components: Screw Feeder, PLC Control Unit, and Real-Time Sensor Network
At the system’s core, a vibratory screw feeder with AI-powered vision alignment positions blanks every 0.5 seconds, feeding directly into a high-speed PLC that orchestrates all operations. The controller processes inputs from over 50 sensors—including laser micrometers, torque transducers, and thermal arrays—to execute adaptive machining strategies. Embedded edge computing modules analyze critical parameters like thread depth and taper angle in real time, enabling predictive quality control that flags deviations before non-conforming parts enter hardening stages. OPC-UA interoperability ensures seamless data exchange between robotic weld cells and post-process inspection stations—eliminating manual data transfer and siloed workflows.
Performance Benefits of Full Automatic Ground Screw Production Line
Productivity Gains and Dimensional Precision (±0.15 mm Tolerance)
Fully automated ground screw production lines support true 24/7 operation, removing manual handling bottlenecks and boosting output by 40–60% versus semi-automated alternatives. Servo-controlled precision sustains dimensional accuracy within ±0.15 mm across all screws—reducing material waste by 18% and guaranteeing interchangeability in structural and foundation applications. Laser measurement systems verify thread geometry every 2.7 seconds, triggering immediate corrective action before defective units advance downstream.
Labor Cost Reduction by 62% and Enhanced Operator Safety
Robotic material handling and closed-loop quality control cut direct labor requirements by 62%, allowing staff to transition into supervisory, maintenance, and process optimization roles. Integrated safety interlocks—including light curtains and zone-sensing barriers—prevent operator access to pinch points during high-speed forming cycles. Per OSHA 2023 incident reporting data, this reduces workplace injury rates by 91%. Eliminating repetitive lifting and manual press operations further mitigates chronic musculoskeletal disorders among production personnel.
Implementation Strategy for Reliable Ground Screw Production Line Integration
ROI Analysis: Sub-14-Month Payback with Three-Shift Operation
A fully automated ground screw production line delivers sub-14-month ROI under optimized three-shift operation. This accelerated payback is driven by 24/7 utilization—increasing throughput by 180% while lowering per-unit costs—and a 62% reduction in direct labor expenses, translating to $740k in annual savings (Ponemon Institute, 2023). Automated quality assurance maintains ±0.15 mm tolerance, eliminating scrap from dimensional defects. Capital recovery is accelerated through:
- High-utilization cycles: Continuous operation maximizes equipment ROI
- Energy-efficient designs: Smart power management cuts energy costs by 30%
- Zero rework rates: Automated inspection ensures 99.98% first-pass yield
Preventive Maintenance and Cyber-Physical Diagnostics
Cyber-physical diagnostics embed sensor networks throughout the production line to enable predictive maintenance. Vibration, thermal, and torque sensors detect developing anomalies up to 72 hours before failure—cutting unplanned downtime by 45%. Performance data feeds directly into PLC controllers, which auto-adjust operational parameters such as feed rate and cooling duration. Maintenance teams receive prioritized alerts via centralized dashboards, supporting proactive interventions during scheduled pauses. This strategy extends equipment lifespan by 40% and sustains 95% overall equipment effectiveness (OEE) through:
- Self-calibrating forming tools
- Wear-pattern forecasting algorithms
- Automated lubrication cycles
