Ground Screw Large Spiral Blade Welding Machine for Solar Mounting System
- Six torches work at once to weld three blades, output equals three welders and cuts production hours sharply
- Auto loading & unloading feeds pipes and blades automatically, less manual carry and fewer worker injuries
- Floating torches fit blade curves smoothly with uniform welds, no breaks and stronger anti-corrosion performance
- PLC one-click control saves speed & time parameters, new operators can run machine after short training
- One clamping finishes both sides of three blades, no repositioning and saves lots of auxiliary setup time
- Adjustable for various solar & house ground screws, one machine supports production of multiple pile sizes
- Stable welding current creates tiny heat zones, pipes stay straight and avoid scrap during galvanizing step
- Overview
- Recommended Products

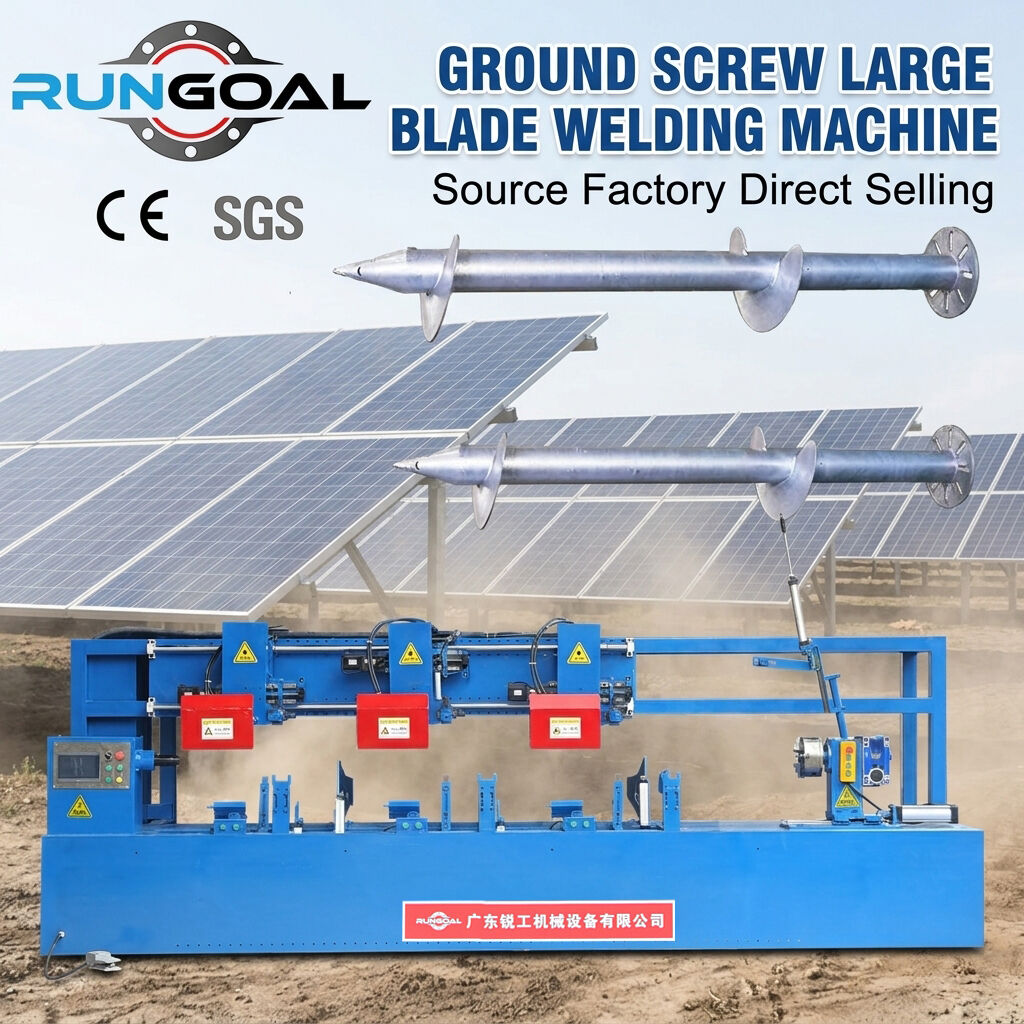

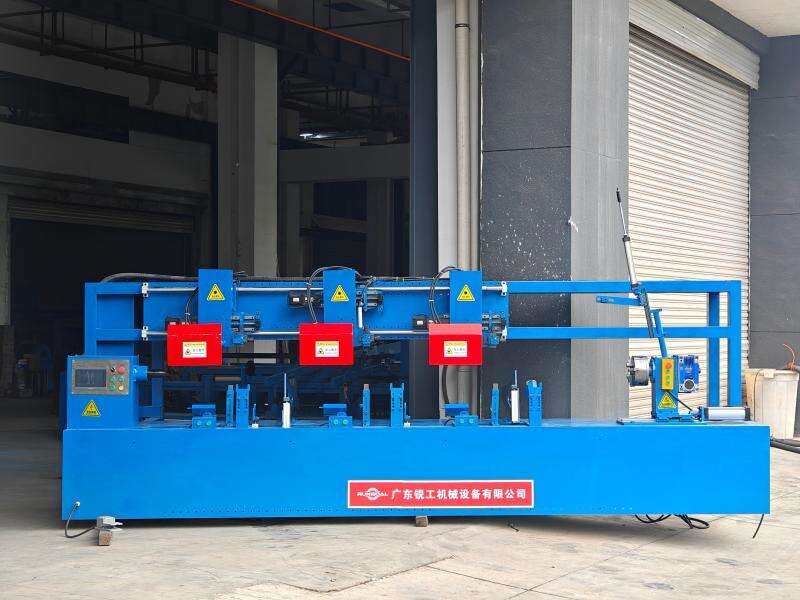

Ground Screw Large Spiral Blade Welding Machine
This automatic welding machine is specially customized for helical ground screws. Equipped with 6 welding torches, it can weld 3 large spiral blades simultaneously in one cycle. It comes with full auto loading & unloading system, controlled by PLC program without manual pipe/blade handling. It replaces multi-person manual welding with uniform, firm welds and high throughput, suitable for mass production of carbon steel ground screws with big blades.
2.Working Principle
1. Auto loader grabs steel pipe and 3 spiral blades, then clamps them in accurate position;
3.Application Area
1. Mass production of helical ground screws for solar power stations & PV bracket foundations;
| Model | Max Processing | Max Loading | Max Blade Thickness | Power | Size | Weight | Speed |
| RG-L200 | φ200mm | 3500mm | 8mm | 100kW | 4600*3000*2000 | 2500kg | 50s-90s |
GuangDong Rungoal Machinery Equipment Co,.Ltd is a professional source manufacturer of ground screws (helical piles)making machine. Based in Guangdong, China,a core manufacturing base with a complete industrial chain and convenient global logistics , we have over 8 years of deep experience in the ground screw industry. We have built a full production system integrating R&D, processing, manufacturing and sales, making us a trusted partner for global customers in the field of foundation engineering.
As a leading factory in the industry, we own large-scale modern workshops, advanced production lines and a professional technical team. We focus on the R&D and manufacturing of high-quality ground screws and supporting production equipment. Our core equipment includes automatic pipe cutting machines, automatic ground screw tip tapering machines, small and large blade welding machines, and nut welding machines. Featuring high precision, stable performance and high efficiency, our equipment is used for our own production and also supplied to manufacturers worldwide.
FAQ:
Q:Are you manufacturer?
A:Yes, We are manufacturer. We have our own factory.
Q:How to order your machine?
A:Please send us your purchase order on Alibaba ,email, whatsapp or wechat. We need to know the following information for your order:
(1)Tube Information: Pipe material (stainless steel , carbon steel , iron pipe,galvanized steel);Pipe Diameter, Pipe Thickness ,Total Pipe Length,Pipe Processing Length.
(2)Price Item, Destination Port, Delivery Time required
(3)Shipping information: Company Name , Address, Phone Number , Destination Seaport/Airport
Q:What are the payment terms?
A:For orders, we can accept T/T, D/P, 30% Deposit，70% Before Shipment
Q:Whole Process for doing business with us ?
A:(1)Please provide details of the tube product you need,and we will recommend suitable machine for you and give you our best price.
(2)if you require order, we will first provide Performa Invoice for you ,and we will arrange to produce at once when we get 30% deposit.
(3)We will send photos of all goods ,packing ,detail ,and B/L copy for you after goods are finished, we will arrange shipment and provide original B/L when you pay the balance.
Q:What is your advantage？
A:Same products，we have more low price,same price,we have more higher quality,same quality,we have more good survice!
