Semi Automatic Metal Tube Taper Forming Machine for Furniture Legs Making
Lower labor intensity, only one operator is needed for feeding and unloading
Stable forming precision, uniform taper angle and smooth pipe surface
Wide processing range, applicable to carbon steel, stainless steel, aluminum alloy tubes
Low failure rate, convenient daily maintenance and low maintenance cost
Semi-automatic hydraulic drive system, automatic feeding & tapering
High-hardness mold, wear-resistant and more than 100,000 or 3 years long service life
- Overview
- Recommended Products

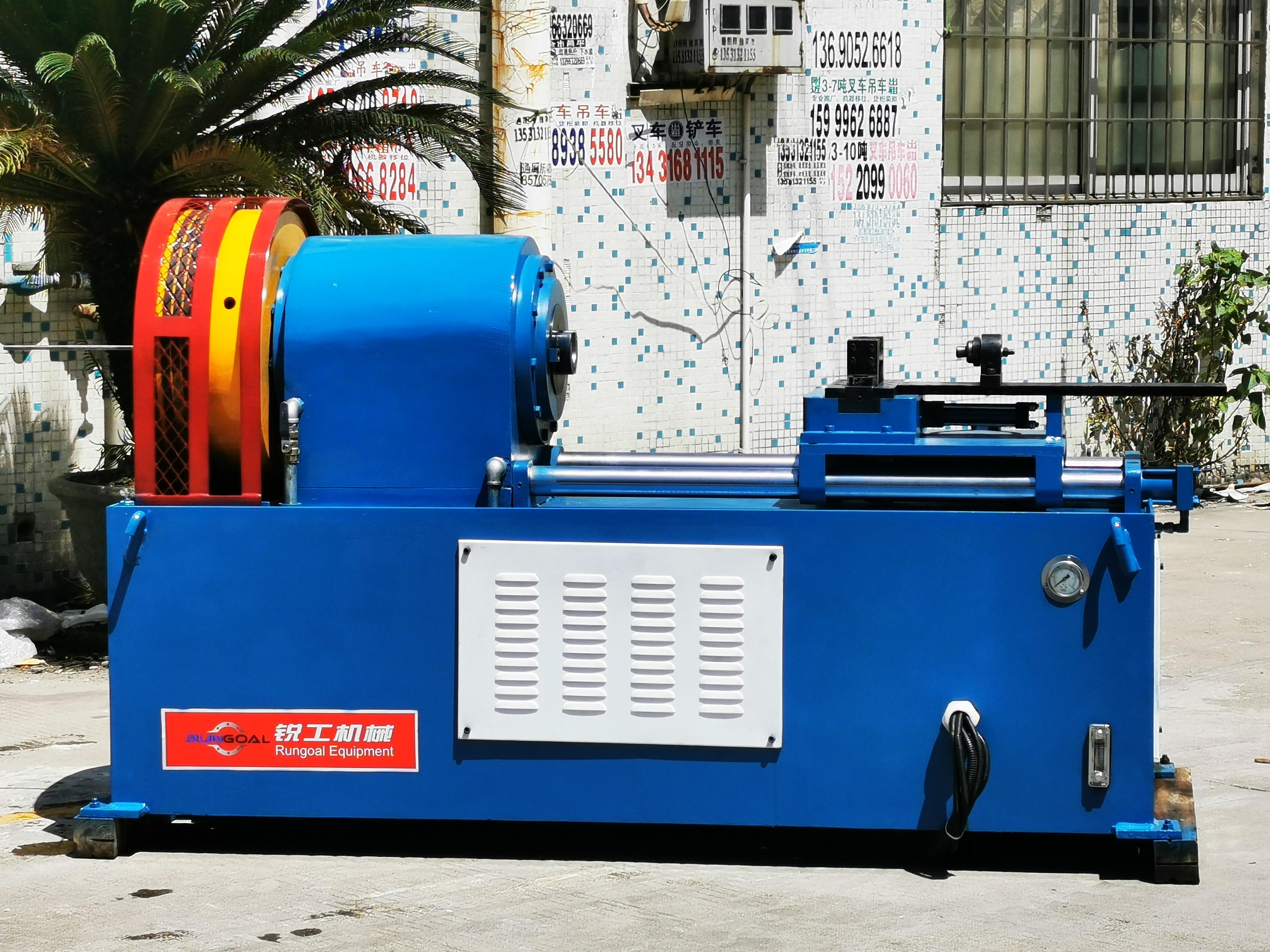

Semi Automatic Metal Tube Taper Forming Machine for Furniture Legs Making
| Machine Features: | ||
| 1.Simple operation, workers can master operation within short training time | ||
| 2.Lower labor intensity, only one operator is needed for feeding and unloading | ||
| 3.Wide processing range, applicable to carbon steel, stainless steel, aluminum alloy tubes | ||
| 4.Small floor space, easy to install and move in workshop | ||
| 5.Can be designed according to customer's reqirements. | ||
| 6.Lower equipment cost compared with fully automatic taper pipe machine | ||
| 7.Stable forming precision, uniform taper angle and smooth pipe surface | ||
| 8.Adjustable processing speed, flexible to match different production batches | ||
| Model | Max.Diameter | Max.Length | Max.Thickness | Feeding | Power | Dimensions | Weight |
| RG-S50400 | ø50mm | 400mm | 1.5mm | Semi-auto | 5.5Kw | 210x80x120cm | 2500kg |
| RG-S76450 | ø76mm | 450mm | 2.0mm | Semi-auto | 7.5Kw | 250x85x1350cm | 2800kg |
| RG-S90800 | ø90mm | 800mm | 2.5mm | Semi-auto | 13Kw | 330x90x1380cm | 4380kg |
* Manual Machine can be plus to semi-auto mode on freely.
Q: Are you a manufacturer or trading company?
A:We have our own factory, Our company is based on the original factory and birth out the professional sales company.
Q: How to choose the pipe/tube embossing machines?
A:You have to inform us following details
A:Max. outside diameter
A:Wall thickness range
A:The pipe material
A:The drawings if possible
Q: MOQ of pipe embossing machine for decorative?
One set is ok.
Q: What kind of services can you give us?
A:1. Pre-sale can be targeted to give some constructive comments.
A:2. Develop a specific plan for your needs
A:3. After-sales reference to specific products, different with different service. Refer to the specific product description.
Q: Can you accept OEM/ODM ?
A:Our products can be customized design for our customer by OEM/ODM.
Q: What is the difference between you and other Chinese suppliers? What is the advantage?
A:1. We are sale enterprise, but we have our own factory. Products quality can be promise.
A:2. We can feedback the progress at any time, making you to stay at home will be able to clear in the heart.
A:3. If Conditions permitting, we can provide the appropriate services at any time.
