Automatic Furniture Sofa Leg Cone Tube Cone Manufacturing Machine Pipe End Taper Forming Machine
Fully automatic feeding, clamping, tapering and unloading without frequent manual intervention.
Continuous non-stop production; processing speed is 3–5 times faster than semi-automatic or manual pipe tapering equipment.
Compatible with carbon steel, stainless steel, aluminum, copper, alloy metal round tubes.
One worker can operate multiple machines simultaneously after simple training.
Hardened alloy mold, wear-resistant and high-temperature resistant, 3 years long service cycle.
Low operating noise, meets factory environmental noise standards.
Smooth inner and outer surfaces of tapered pipe without burrs, no secondary polishing required for most products.
- Overview
- Recommended Products

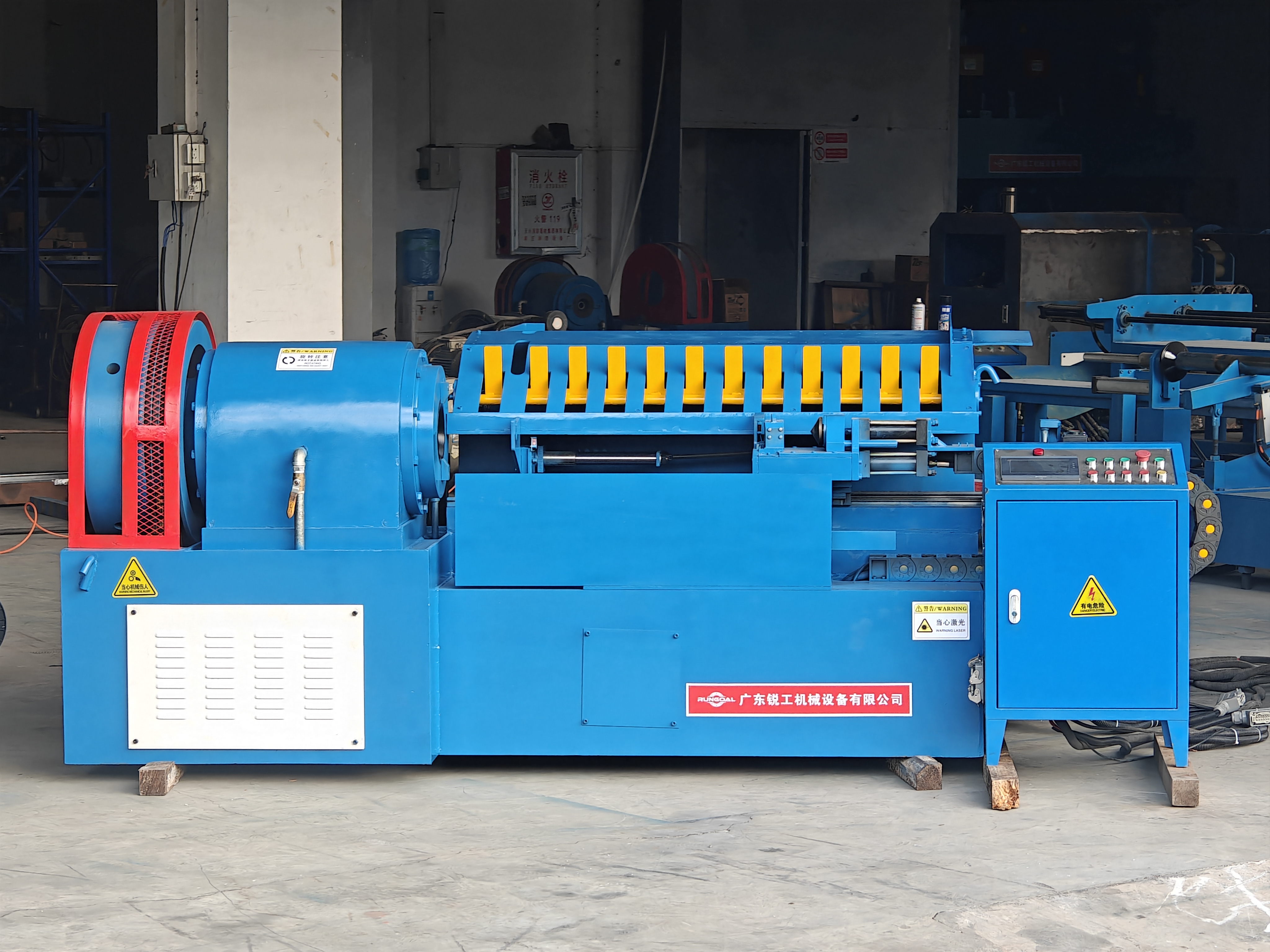

Automatic Furniture Leg Cone Tube Cone Manufacturing Machine Pipe End Taper Forming Machine
| Machine Features: | ||
| 1.Fully automatic loading,feeding , tapering and unloading without frequent manual intervention. | ||
| 2.Continuous non-stop production; processing speed is 3–5 times faster than semi-automatic or manual pipe tapering equipment. | ||
| 3.Short mold switching time, suitable for mass production of tapered pipes in batches. | ||
| 4.Adopts servo motor + PLC control system, stable feeding stroke and uniform taper angle. | ||
| 5.Small dimensional tolerance of pipe mouth taper; no deformation, crack or uneven wall thickness after forming. | ||
| 6.Digital parameter adjustment, taper length and angle can be set directly on touch screen. | ||
| 7.Compatible with carbon steel, stainless steel, aluminum, copper, alloy metal round tubes. | ||
| 8.Supports processing pipes of different diameters and wall thicknesses by replacing dedicated molds. | ||
| 9.Widely used for furniture legs, lamp poles, spiral ground piles, handrail pipes, pipeline fittings. | ||
| 10.One worker can operate multiple machines simultaneously after simple training. | ||
| 11.Human-machine touch screen interface, all production parameters visualized and easy to modify. | ||
| 12.Automatic fault alarm function to remind abnormal operation in real time. | ||
| 13.Thickened cast machine body, strong shock resistance, no vibration during high-speed forming. | ||
| 14.Hardened alloy mold, wear-resistant and high-temperature resistant, long service cycle. | ||
| Model | Max.Diameter | Max.Length | Max.Thickness | Feeding | Power | Dimensions | Weight |
| RG-M76450 | ø76mm | 450mm | 2.0mm | Automatic | 14Kw | 300x220x1210cm | 3500kg |
| RG-S90800 | ø90mm | 800mm | 2.5mm | Automatic | 15.5Kw | 350x250x140cm | 4880kg |
* Manual Machine can be plus to semi-auto mode on freely.
Q: Are you a manufacturer or trading company?
A:We have our own factory, Our company is based on the original factory and birth out the professional sales company.
Q: How to choose the pipe/tube embossing machines?
A:You have to inform us following details
A:Max. outside diameter
A:Wall thickness range
A:The pipe material
A:The drawings if possible
Q: MOQ of pipe embossing machine for decorative?
One set is ok.
Q: What kind of services can you give us?
A:1. Pre-sale can be targeted to give some constructive comments.
A:2. Develop a specific plan for your needs
A:3. After-sales reference to specific products, different with different service. Refer to the specific product description.
Q: Can you accept OEM/ODM ?
A:Our products can be customized design for our customer by OEM/ODM.
Q: What is the difference between you and other Chinese suppliers? What is the advantage?
A:1. We are sale enterprise, but we have our own factory. Products quality can be promise.
A:2. We can feedback the progress at any time, making you to stay at home will be able to clear in the heart.
A:3. If Conditions permitting, we can provide the appropriate services at any time.
