Automatic Pipe Pointing Machine for Solar Ground Screw Making
- Auto feeding, clamping and discharging all-in-one design, one worker can supervise multiple machines to cut labor cost sharply.
- PLC touch screen stores forming parameters, taper length and angle stay consistent with tiny dimensional errors.
- Heavy-duty thickened steel frame and stable hydraulic system, no shaking during long-time non-stop mass production.
- Quick replacement taper molds, fast switch among different pipe diameters to meet diversified customized orders.
- High continuous production efficiency, daily output far exceeds semi-automatic and manual tapering equipment greatly.
- Standardized mechanical structure with durable spare parts, simple daily maintenance and low long-term repair expenses.
- Automatic length positioning device ensures uniform taper section from pipe head to tail for neat ground screw tips.
- Overview
- Recommended Products
- Put bundled pipes on stock bin, machine separates, conveys and clamps pipes automatically.

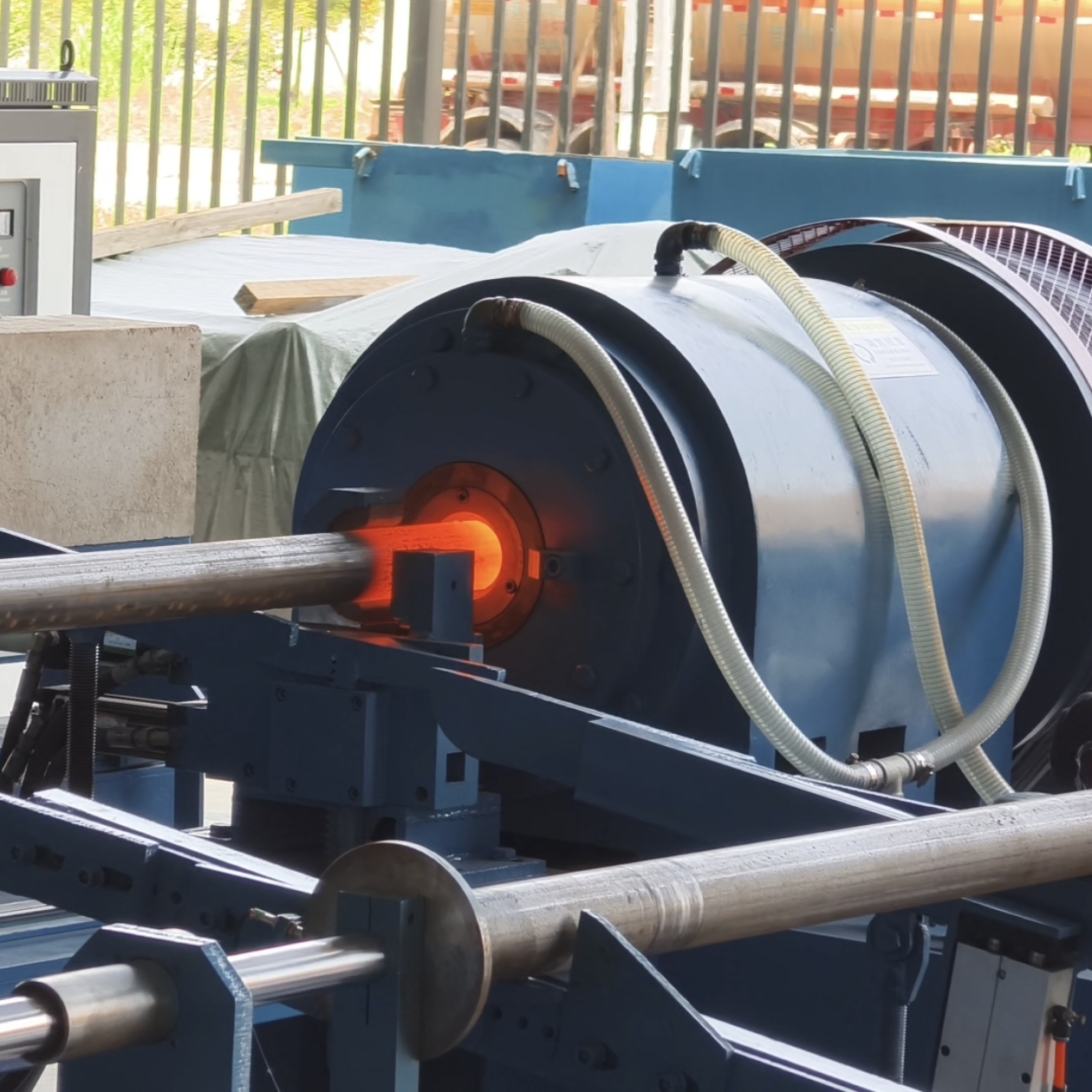

- Hydraulic swaging die presses pipe end to form taper; thick wall pipes can be pre-heated by high-frequency heater.
- Clamps release after processing, finished piles auto discharge, full unattended cycle.

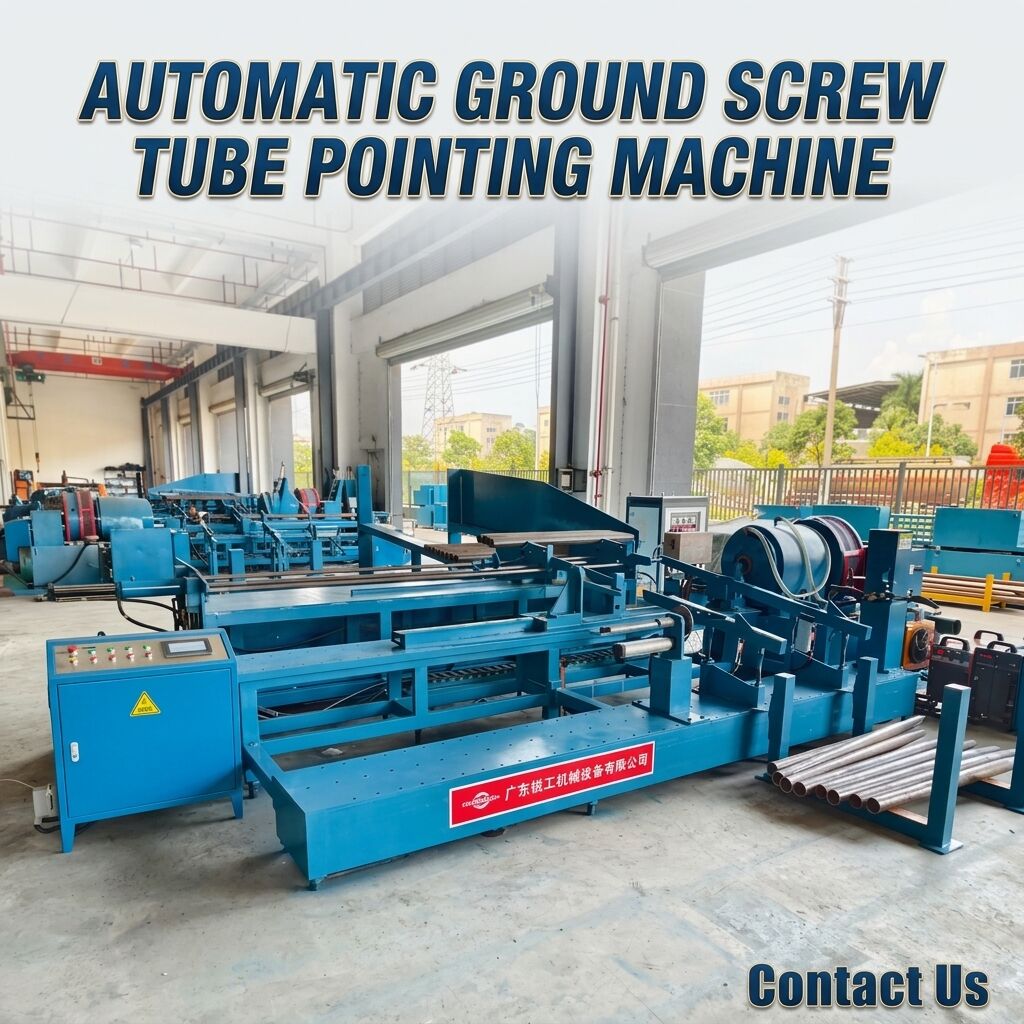

Automatic Pipe Pointing Machine for Solar Ground Screw Making
Brief Introduction
This full-automatic ground screw tapering machine is CNC forming equipment for solar ground piles. It integrates auto feeding, hydraulic tapering and auto unloading with PLC touch control. No constant manual loading, supports cold & high-frequency hot forming for mass galvanized steel pipe production. Taper tips are smooth and crack-free, fit common pipe sizes like 76, 89, 114mm.
Working Principle
Core Advantages
1.Fully automatic cycle, one worker can manage multiple machines, cut labor cost and boost output greatly.
2.PLC saves processing data, precise & consistent taper length, tiny dimensional tolerance for all ground screws.
3.Heavy thick frame and stable hydraulic system, no vibration during long shift, molds wear slower.
4.Quick-change mold design, switch pipe diameters & taper sizes fast for mixed-type ground screw orders.
Application Fields & Scenarios

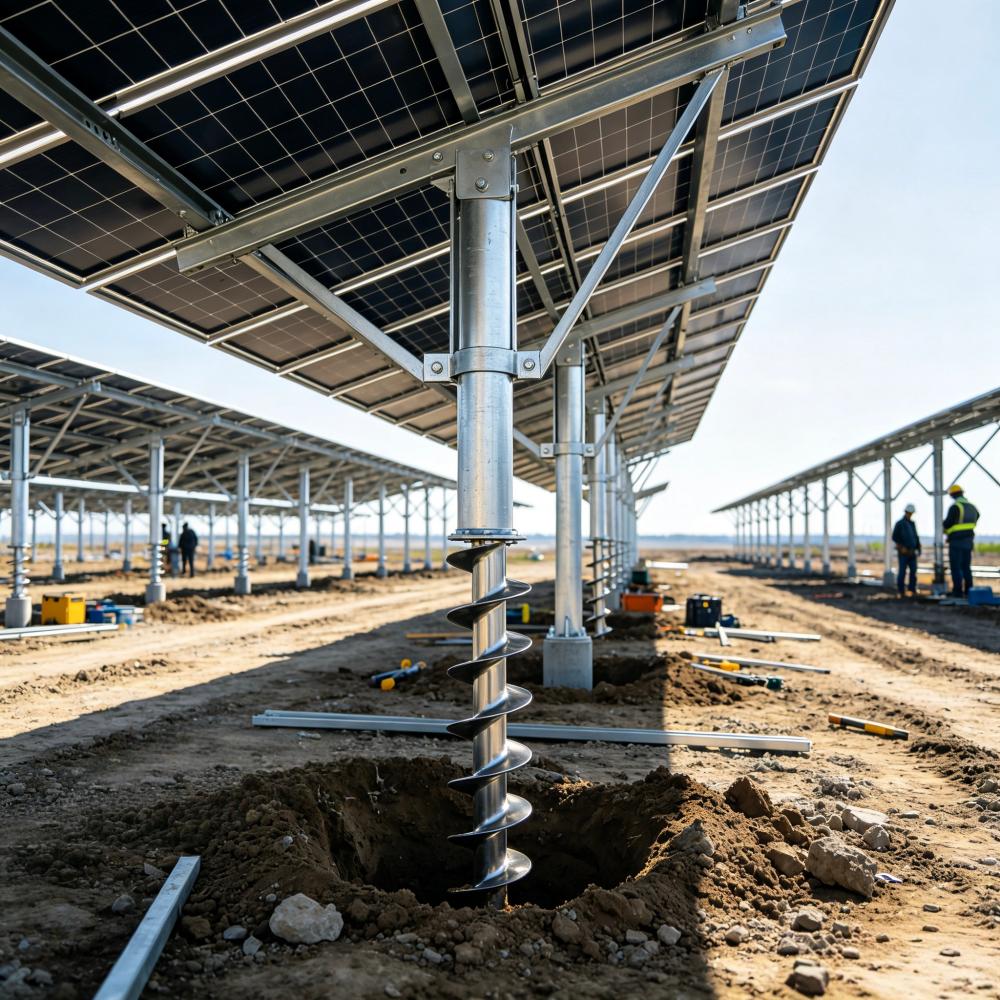

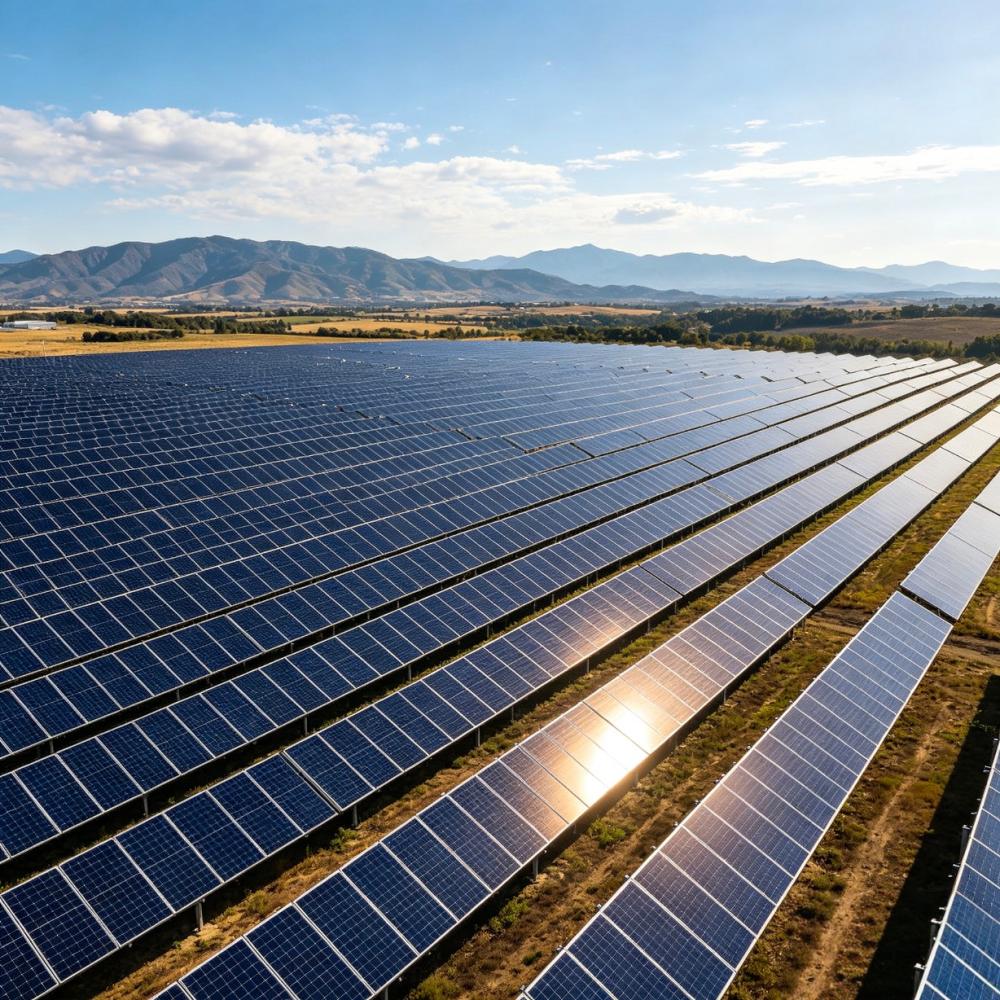

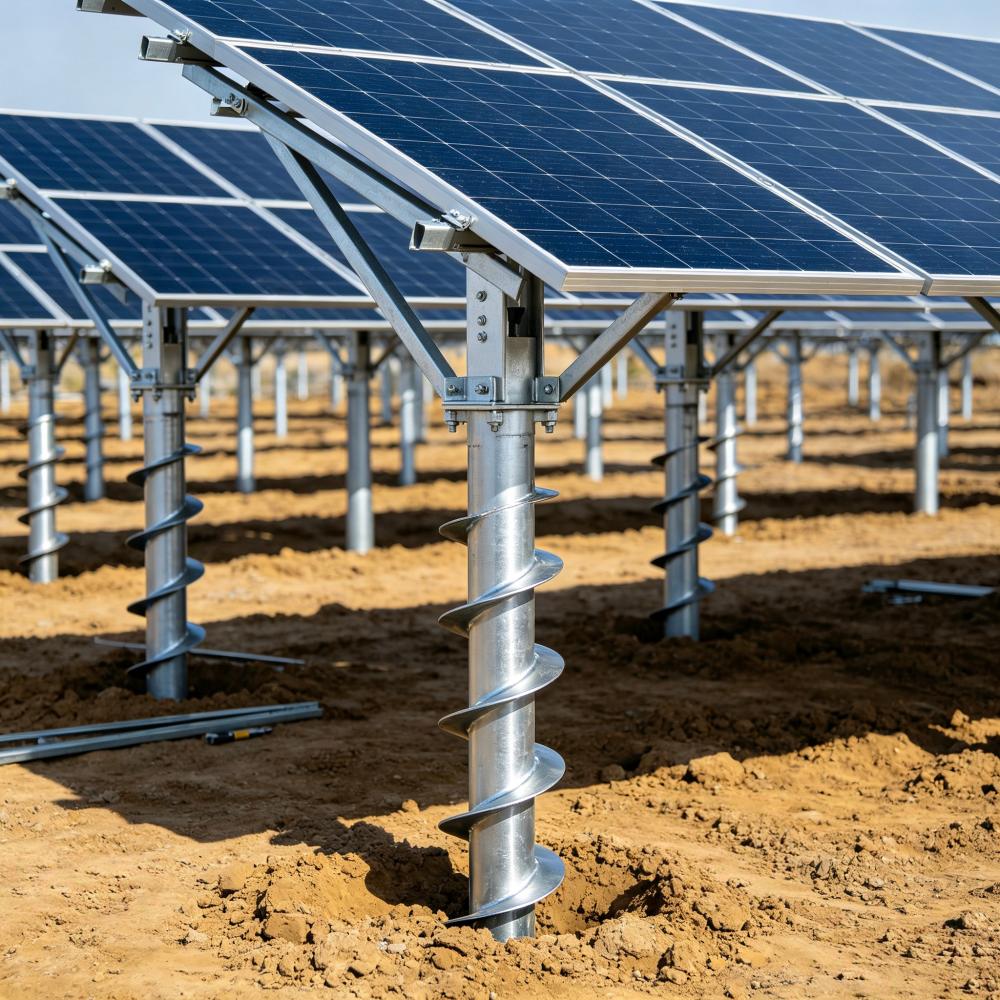

1.New energy PV industry: solar support ground screws for power stations;
2.Greenhouse agriculture: greenhouse foundation piles;
3.Infrastructure guardrail: fence & landscape spiral piles;
4.Prefab construction: light house foundation ground screws;
5.Outdoor engineering: sign & street light fixing piles.
