Manual Ground Screws Tube Pointing Machine Helical Pile Pipe Tapering Machine for Solar Mounting System
- Integrated hydraulic system delivers strong squeezing force, neat taper tip without pipe cracking or wrinkling.
- Quick-change taper molds fit multiple pipe diameters, produce different taper lengths for various ground screws.
- Thickened heavy machine frame with high rigidity, stable operation under long continuous reducing processing.
- Simple button control panel, operators can finish ground screw tapering after short basic operation training.
- Wide material compatibility, tapering carbon steel, galvanized steel pipes for photovoltaic ground screws.
- Few vulnerable standard spare parts, simple daily maintenance and low long-term equipment repair expense.
- Taper angle and length adjustable by mold replacement, meet customized ground screw production demands.
- Overview
- Recommended Products
- PV new energy industry: Tip tapering for solar support embedded ground screws
- Municipal fence engineering: Forming embedded fixing ground screws for road & yard railings
- Wood house & landscape construction: Processing fixing spiral piles for antiseptic wooden houses
- Greenhouse agriculture: Tapering embedded ground screws for farm greenhouse brackets
- Small hardware pipe factories: Sampling & mass tapering of all custom embedded round pipes
Introduction

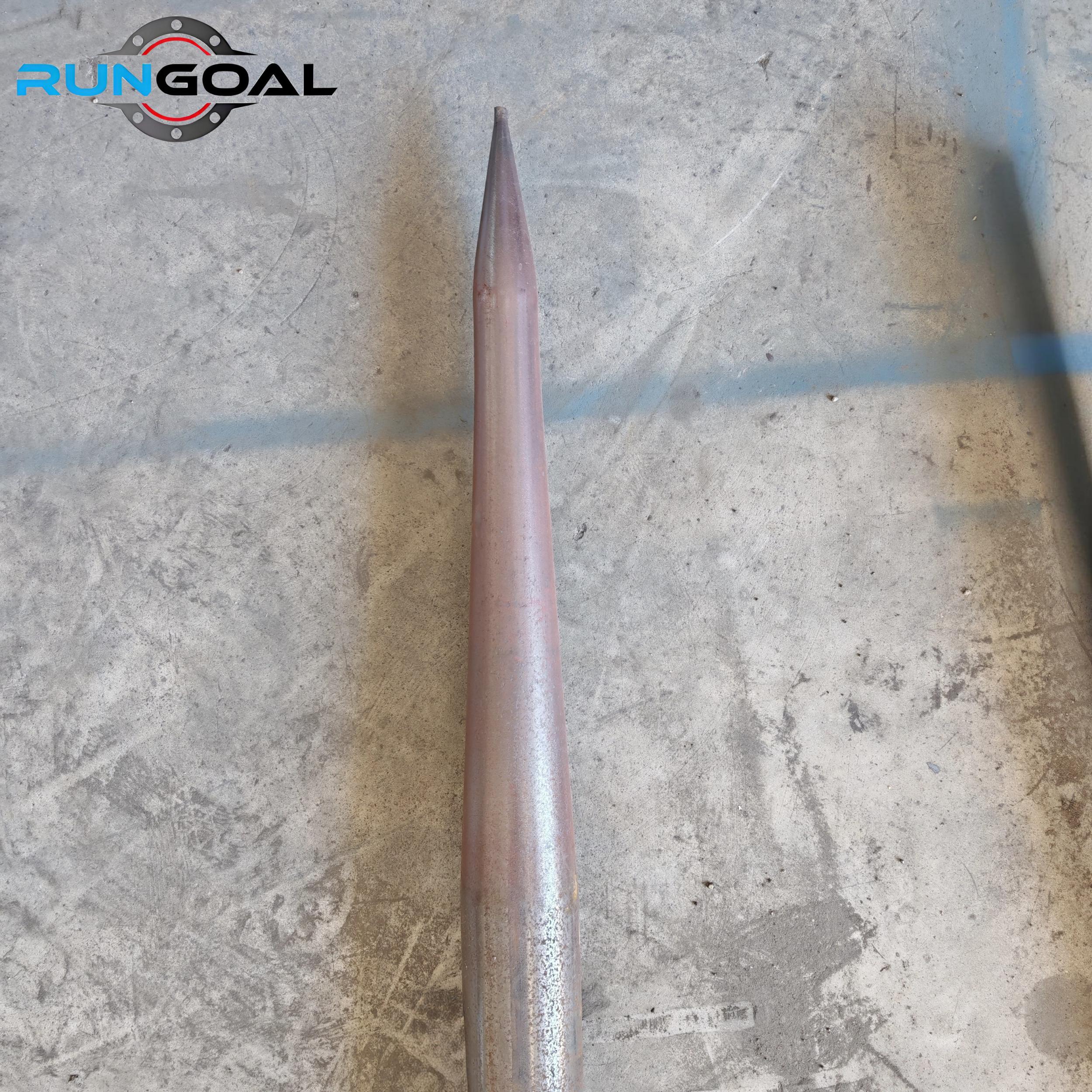

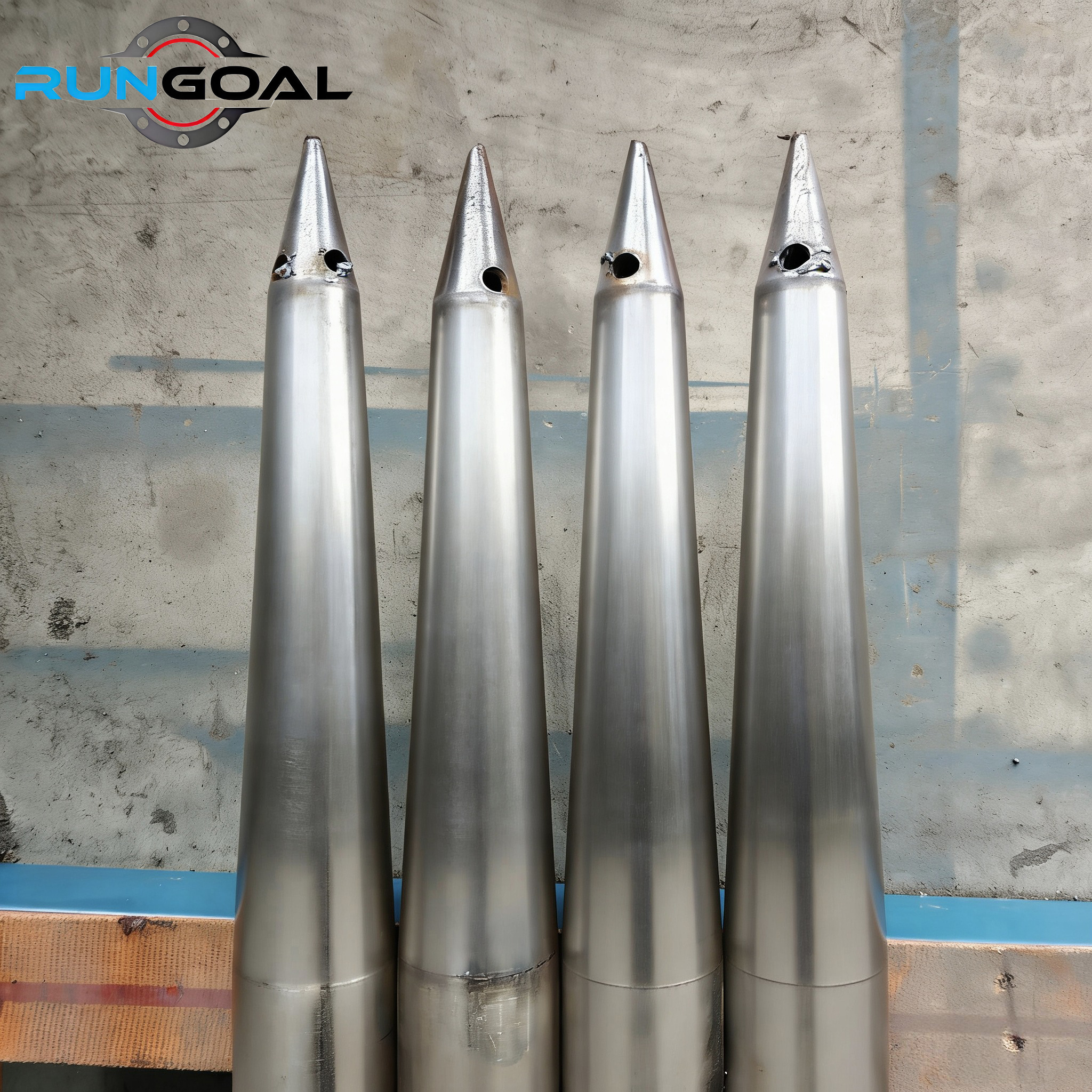

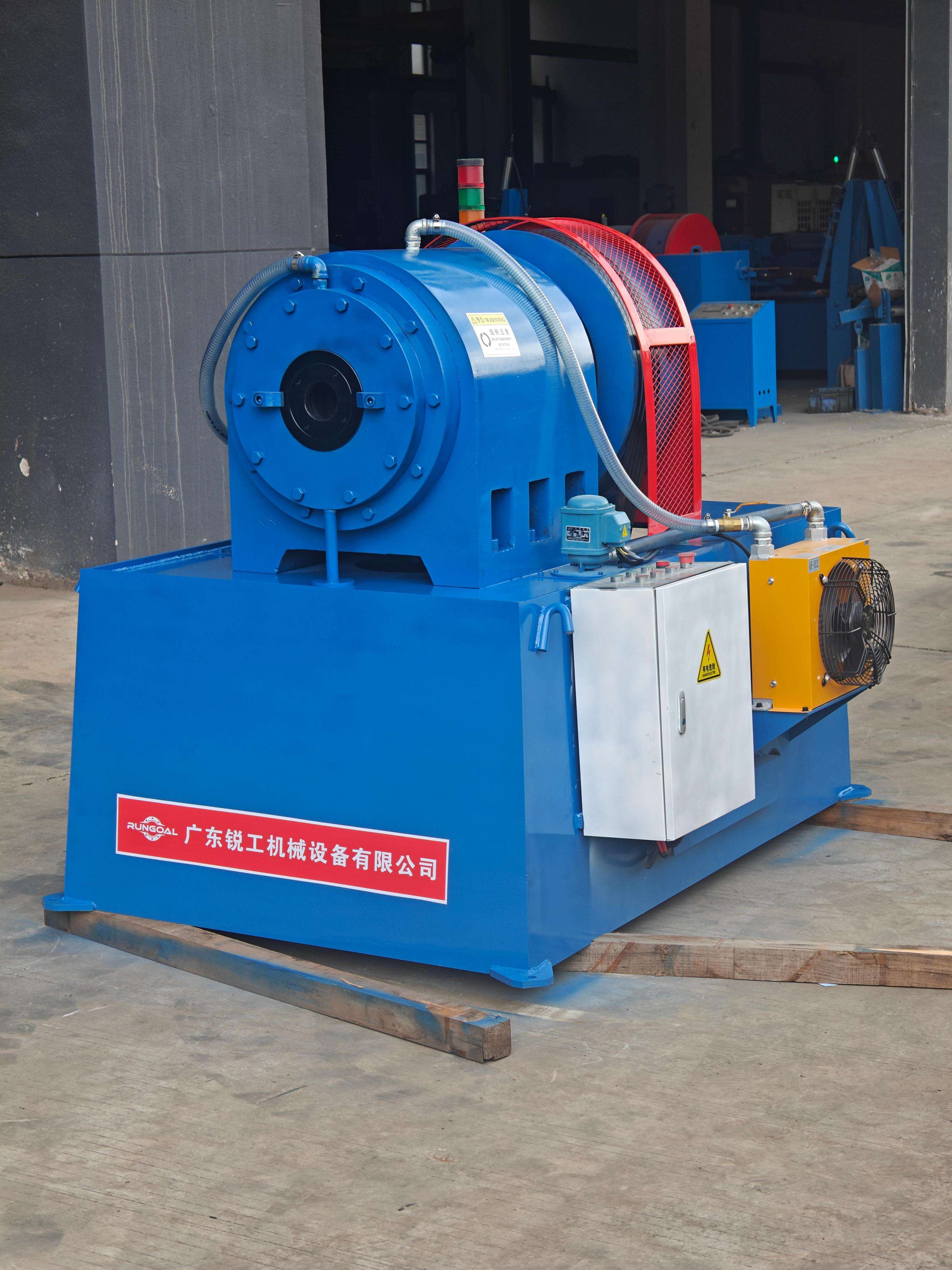

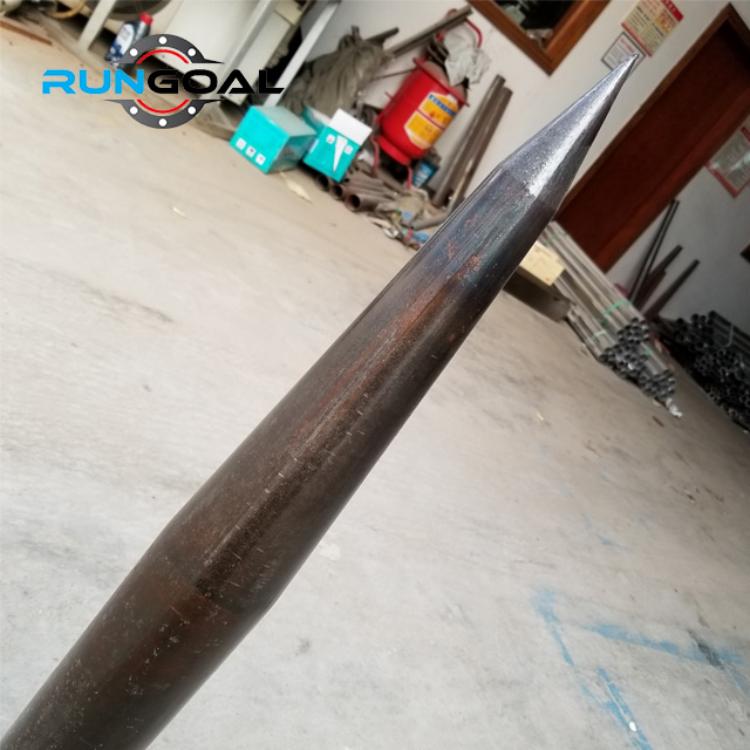

Ground screw tube pointing machine with manual loading/unloading, specially for tapering round pipes of photovoltaic and fence ground screws. After manual pipe positioning, hydraulic pressure automatically shapes neat tips. Changing molds makes different tapers & pipe sizes, low investment for small-batch factories.
Working Principle
Workers manually feed and fix galvanized steel pipes into molds. Hydraulic cylinders drive molds to squeeze pipe ends, metal shrinks plastically into tapered tips. Molds release after forming, workers take finished ground screws out easily.
Application Fields
Model |
Max Processing Diameter |
Max Processing Length |
Max Thickness |
Power |
Dimensions (mm) |
Weight |
RG-M90 |
Φ90mm |
4m |
6mm |
145kW |
1900×1600×1400 |
3500kg |
RG-S140 |
Φ140mm |
4m |
6mm |
150kW |
6300×1200×1500 |
4500kg |
RG-A168 |
Φ168mm |
4m |
6mm |
160kW |
7000×6300×1900 |
9000kg |
FAQ:
Q:Are you manufacturer?
A:Yes, We are manufacturer. We have our own factory.
Q:What can we provide for you ?
A:(1)Tube Tapering Machine ,Tube Squaring Machine,Ground Screw Pipe Coning Machine , Ground Screw&Helical Pile Making Machine,Pipe Embossing Machine ,Pipe Spiral Machine,CNC Light Pole&Flag Pole Spinning Machine etc.Finally we have more than 10 years export experience.
Q:How to order your machine?
A:Please send us your purchase order on Alibaba ,email, whatsapp or wechat. We need to know the following information for your order:
(1)Tube Information: Pipe material (stainless steel , carbon steel , iron pipe,galvanized steel);Pipe Diameter, Pipe Thickness ,Total Pipe Length,Pipe Processing Length.
(2)Price Item, Destination Port, Delivery Time required
(3)Shipping information: Company Name , Address, Phone Number , Destination Seaport/Airport
Q:What are the payment terms?
A:For orders, we can accept T/T, D/P, L/C at sight
Q:Whole Process for doing business with us ?
A:(1)Please provide details of the tube product you need we quote for you
(2)if you require order, we will provide Performa Invoice for you ,and we will arrange to produce at once when we get 30% deposit.
(3)We will send photos of all goods ,packing ,detail ,and B/L copy for you after goods are finished, we will arrange shipment and provide original B/L when you pay the balance.
