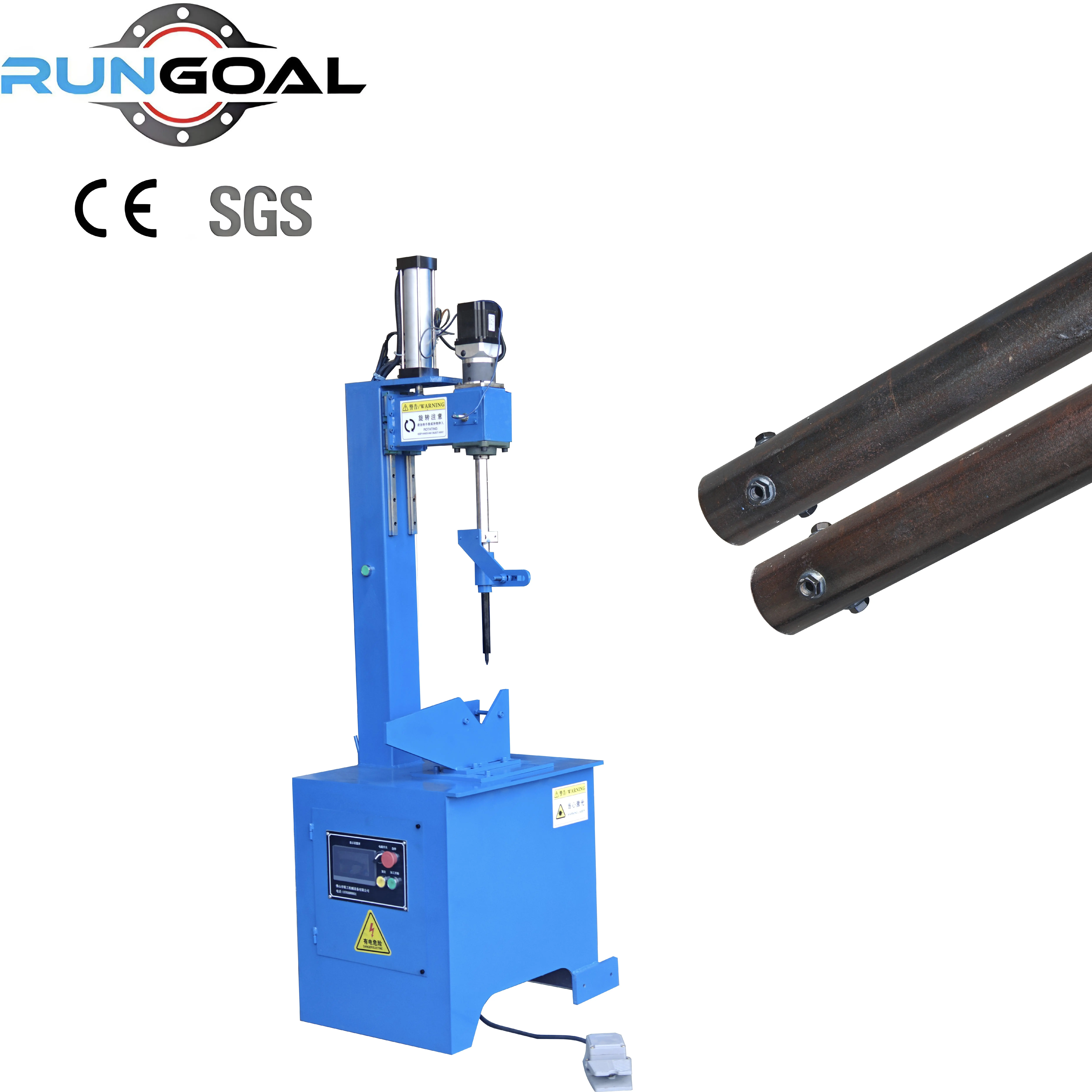

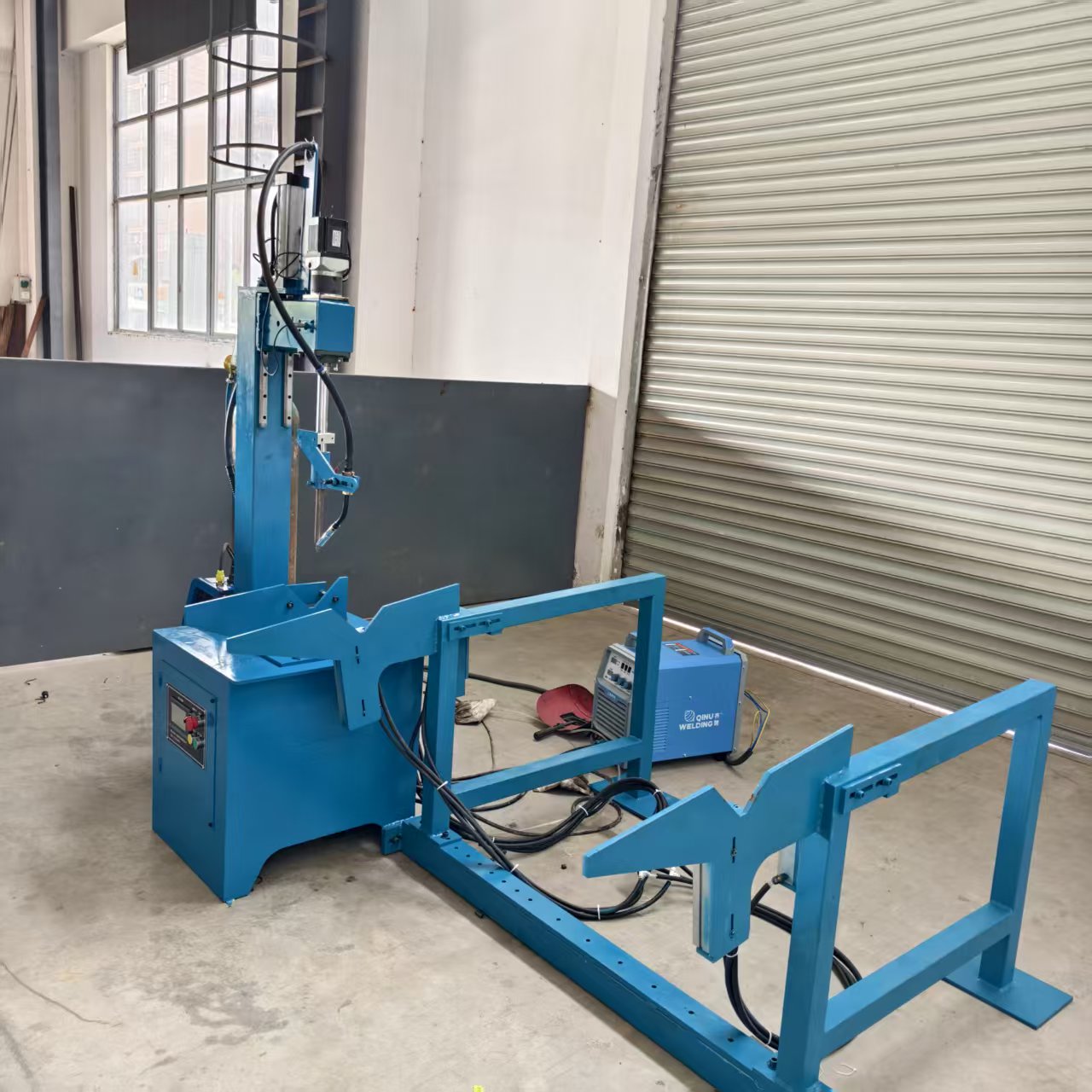

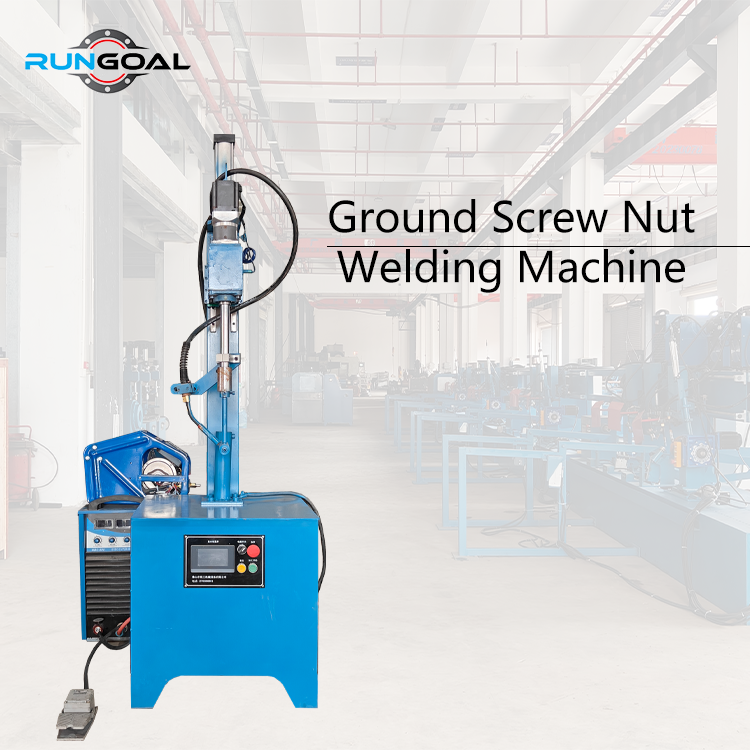

Ground Screw Nut Welding Machine
- Manual nut placing fits various nut sizes, no frequent replacement of complex automatic separating molds.
- Simplified machine structure brings low failure rate, easy maintenance, operators fix minor breakdowns fast.
- Finished workpieces discharge automatically after welding, workers only focus on putting nuts into position.
- Low debugging difficulty; switch pipe sizes by simple parameter adjustment without complicated program rewrite.
- Overview
- Recommended Products

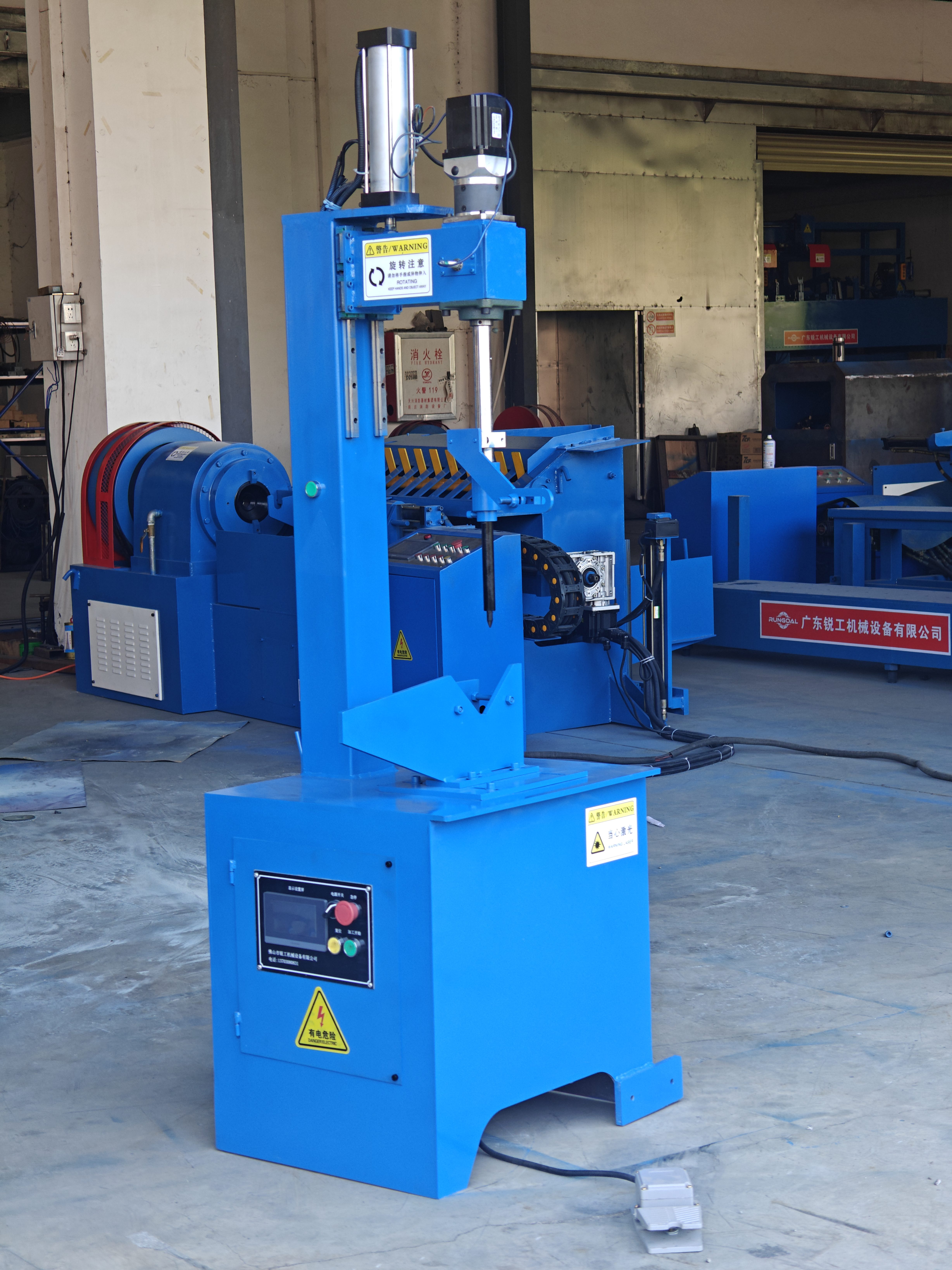

Ground Screw Nut Welding Machine
| Model | Max Loading Diameter | Max Loading Length | Feeding | Power | Size | Speed |
| RG-N200 | 200mm | 3.5m | Auto Loading,Unloading | 30kW | 3100*1700*2000 | 20s-30s |
1.Introduction

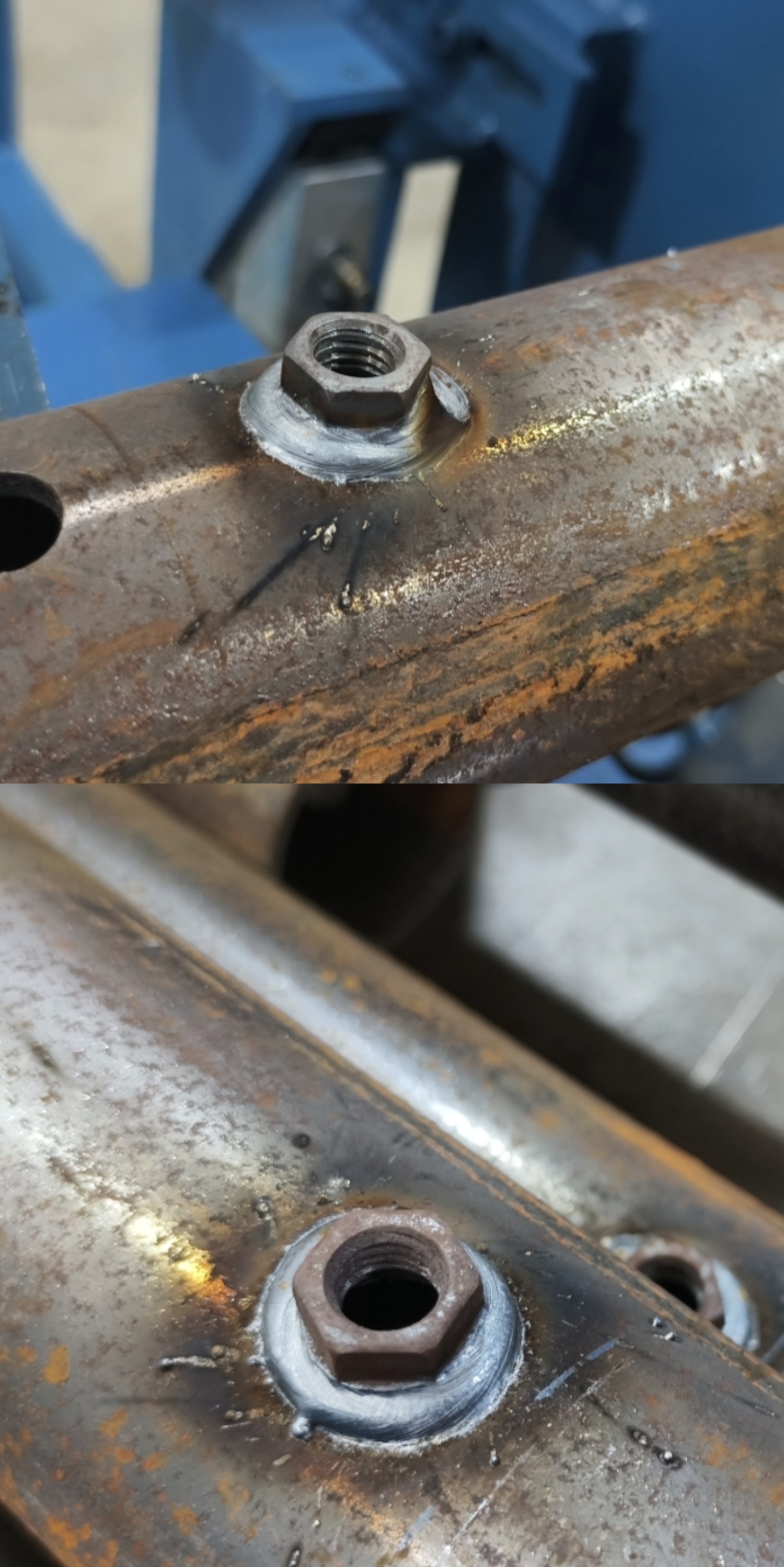

Special machine for welding nuts on ground screw tops. Auto pipe feeding & finished part discharging, only manual nut loading. One worker runs multiple machines to save labor with neat, solid welding joints.
2.Working Principle

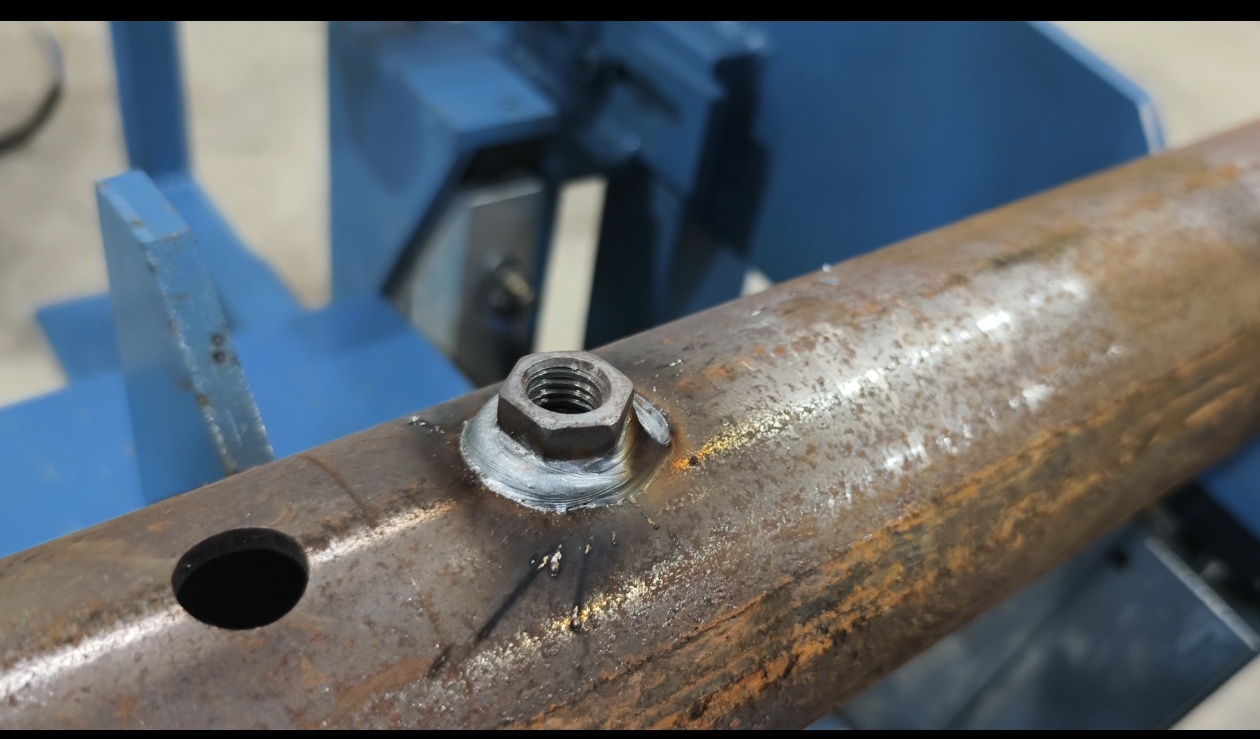

Steel pipes are auto fed by conveyor, then manual positioning. Welding gun fuses nuts via resistance welding. After welding, finished screws slide out automatically.
3.Application Area
Mass production of foundation ground screws for solar stations, wooden houses, fences, billboards and outdoor temporary sheds.
