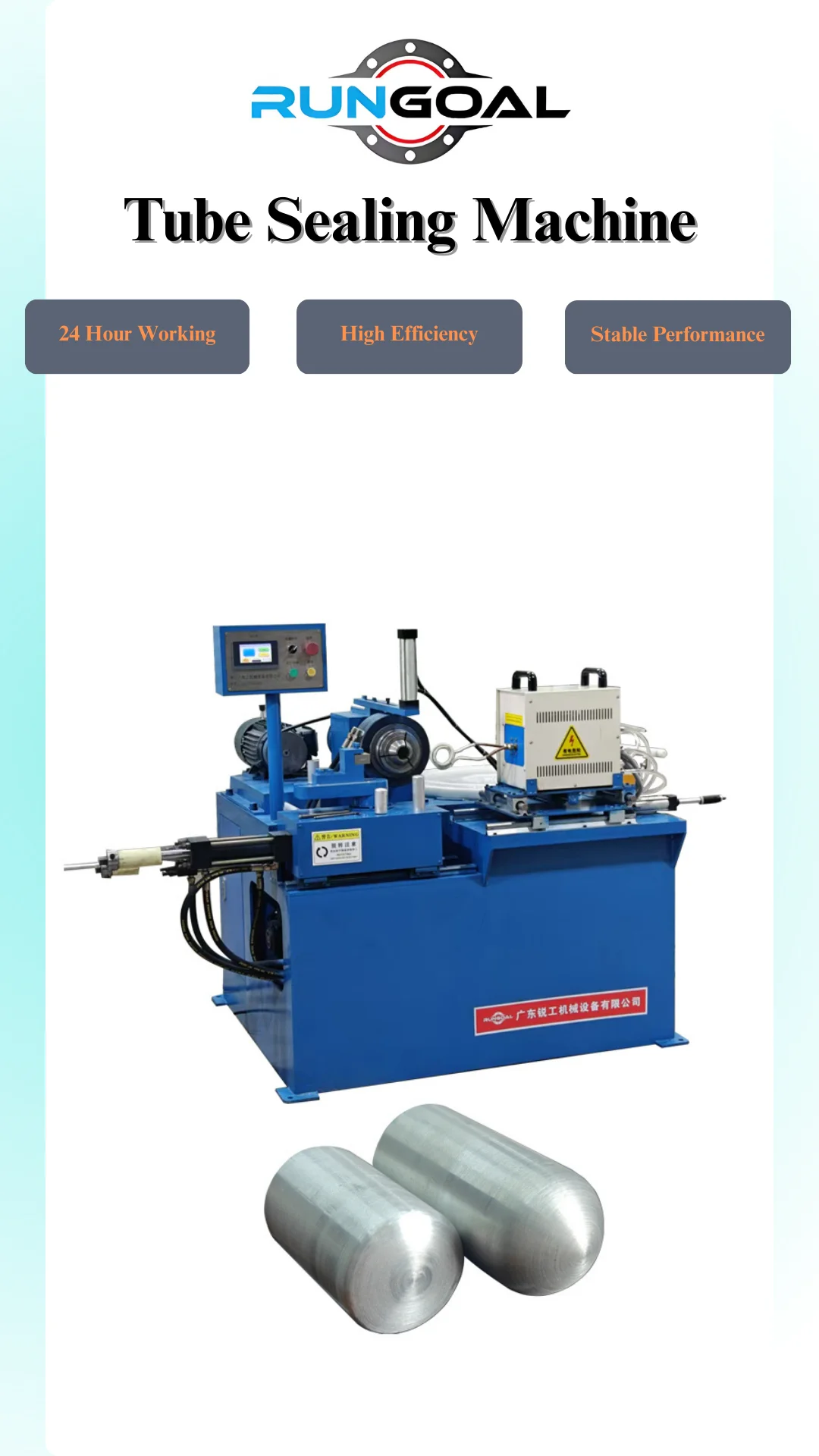

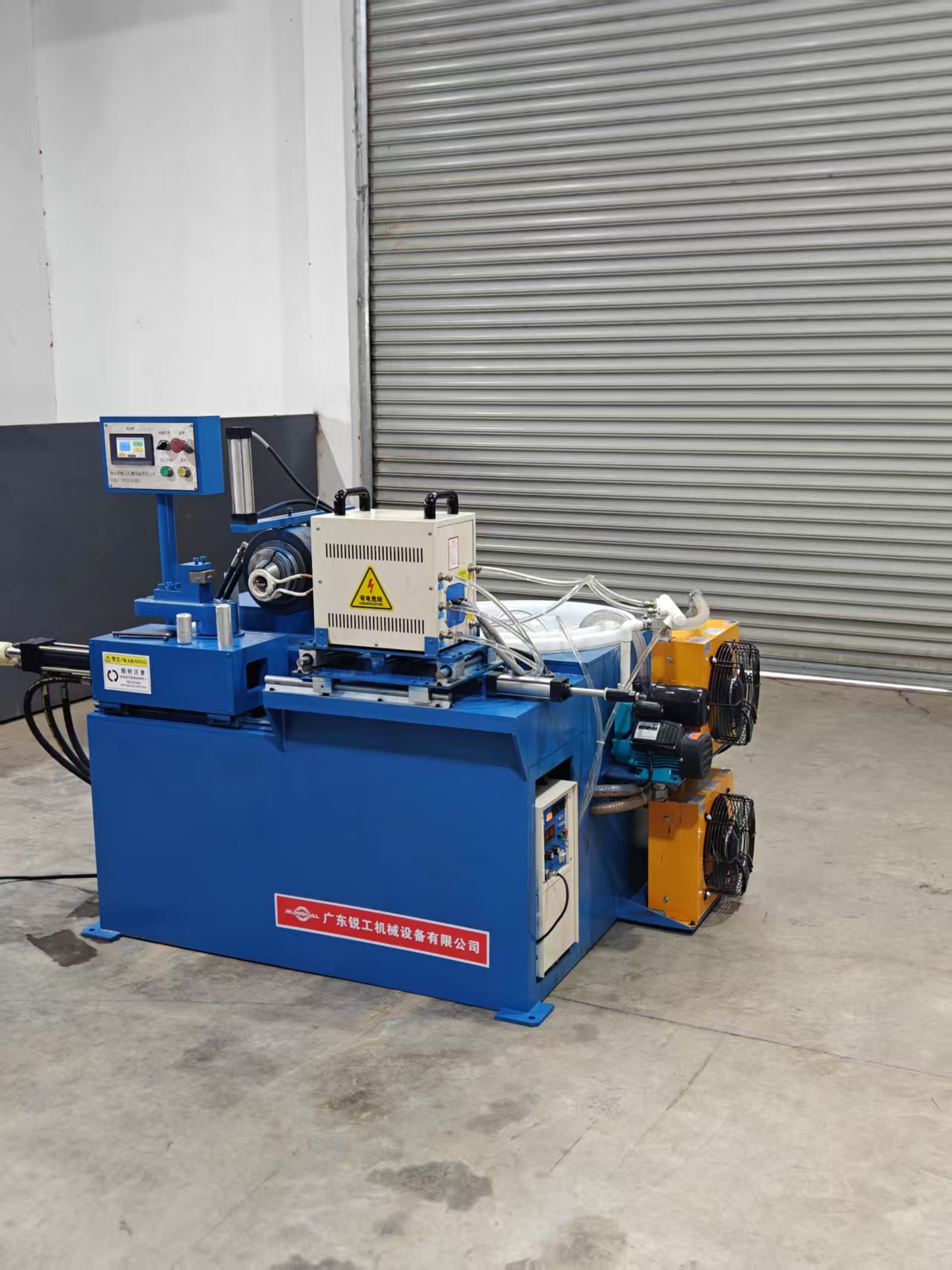

Tube Pipe Sealing Closing Machine
- Manual feeding & unloading design with PLC control, stable pipe sealing for medium and small batch production lines.
- Integrated high-frequency heating unit melts tube ends evenly, smooth round sealing head without cracks or leaks.
- Touch screen control panel with adjustable heating time, new operators can master operation quickly.

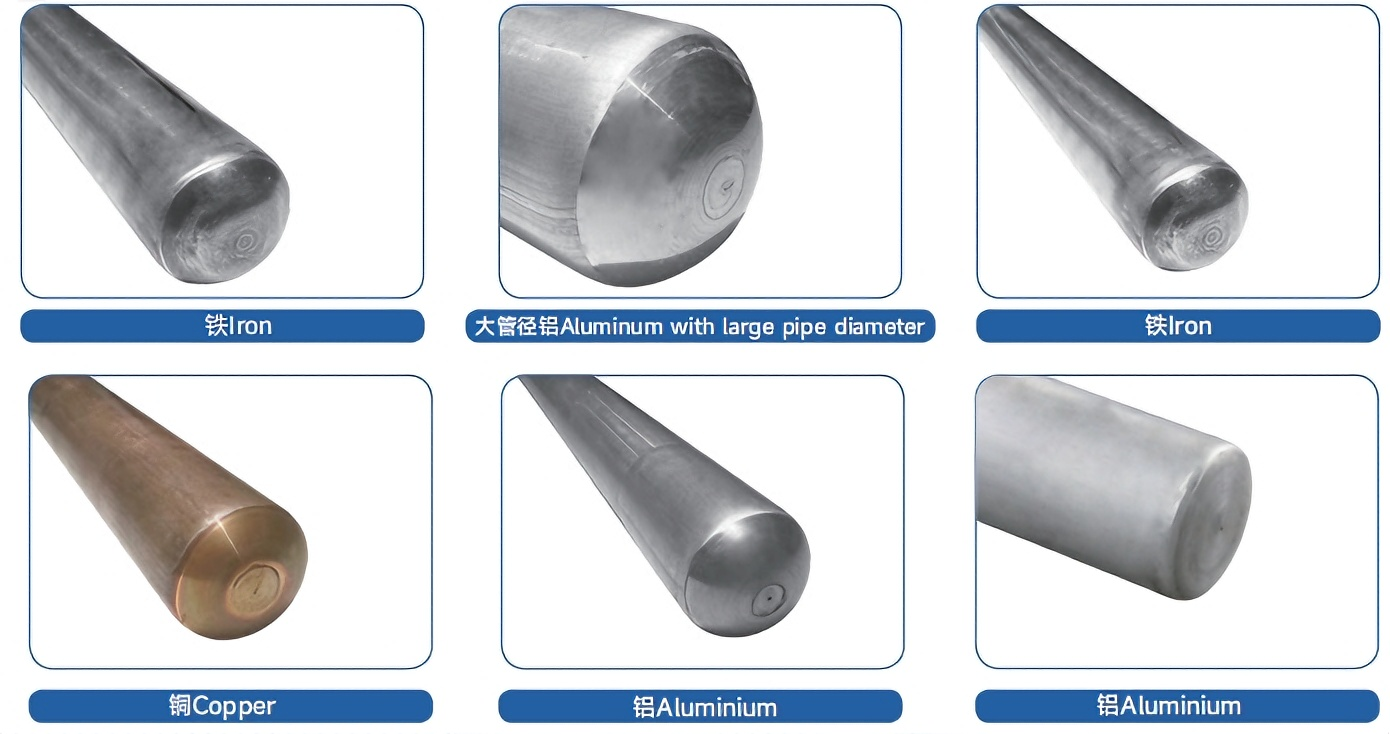

- Wide material compatibility, seal aluminum, iron, steel and stainless steel round metal pipes efficiently.
- Compact overall structure occupies little space, easy to place in small workshops with flexible layout.
- Simple mechanical layout with few vulnerable parts, low maintenance cost and convenient daily upkeep.

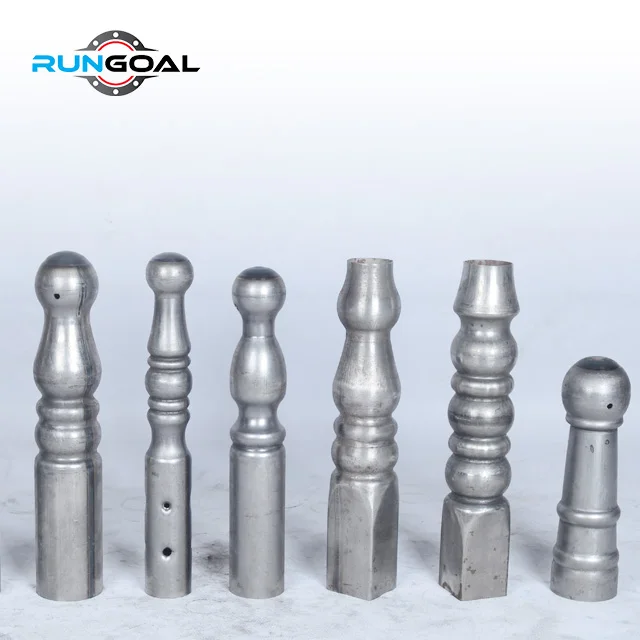

- Replaceable forming molds support different pipe diameters, realize diversified customized sealing shapes.
- Overview
- Recommended Products

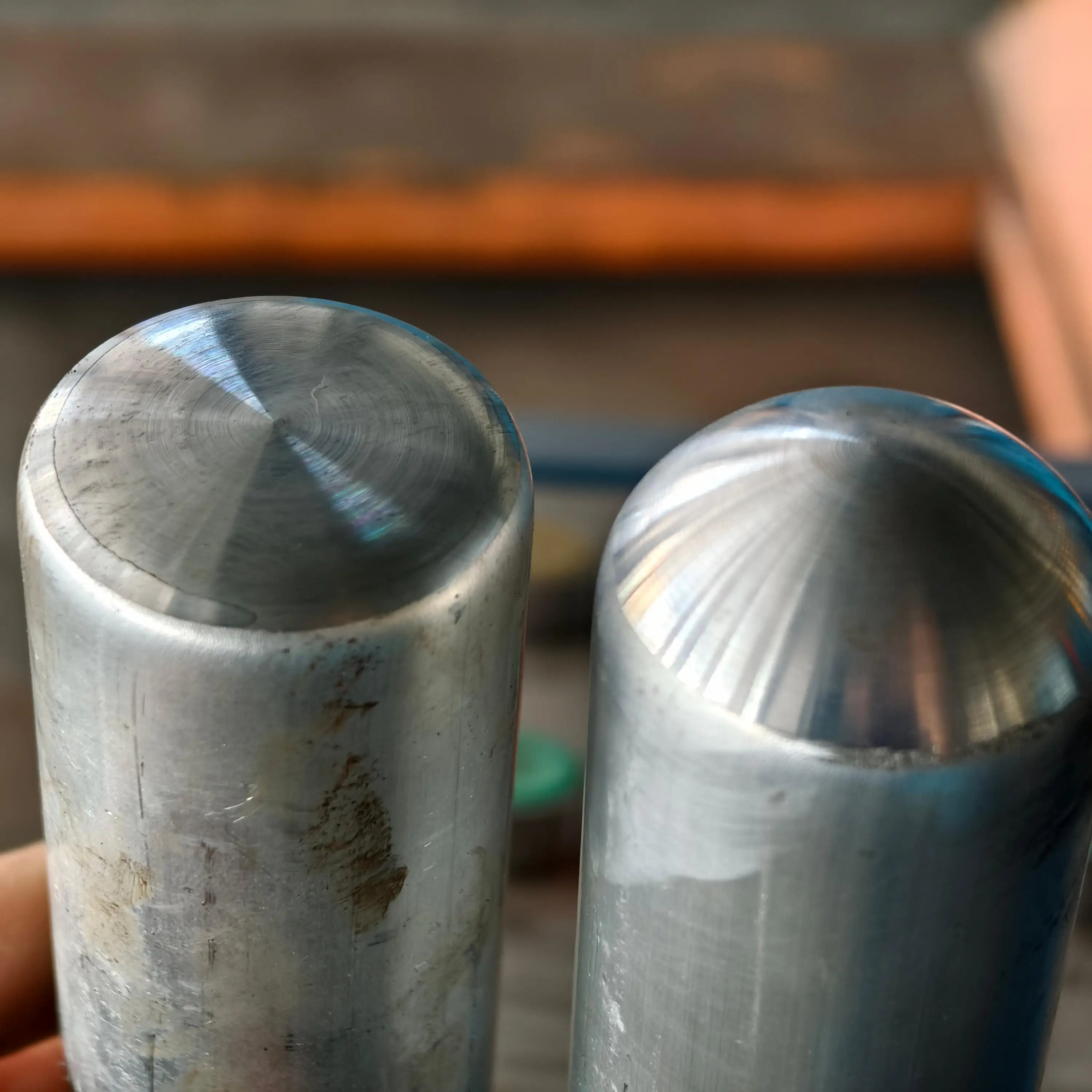

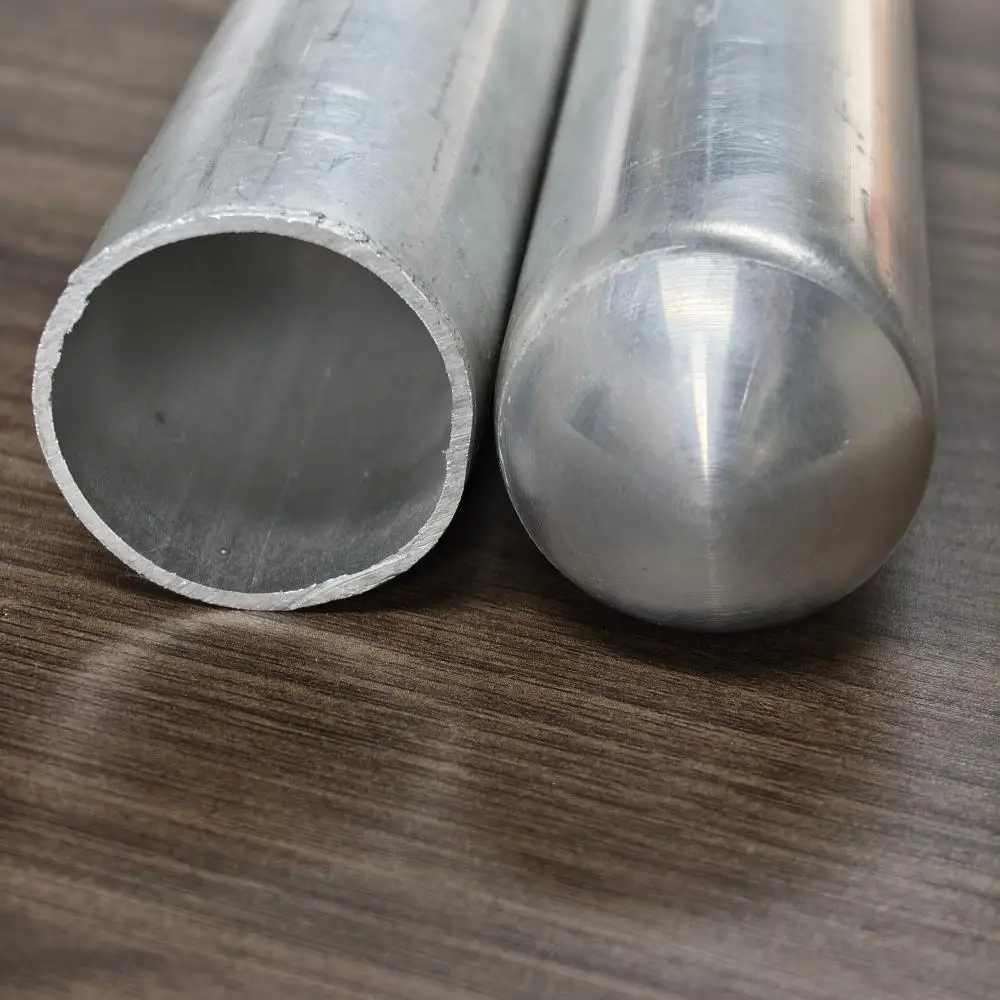

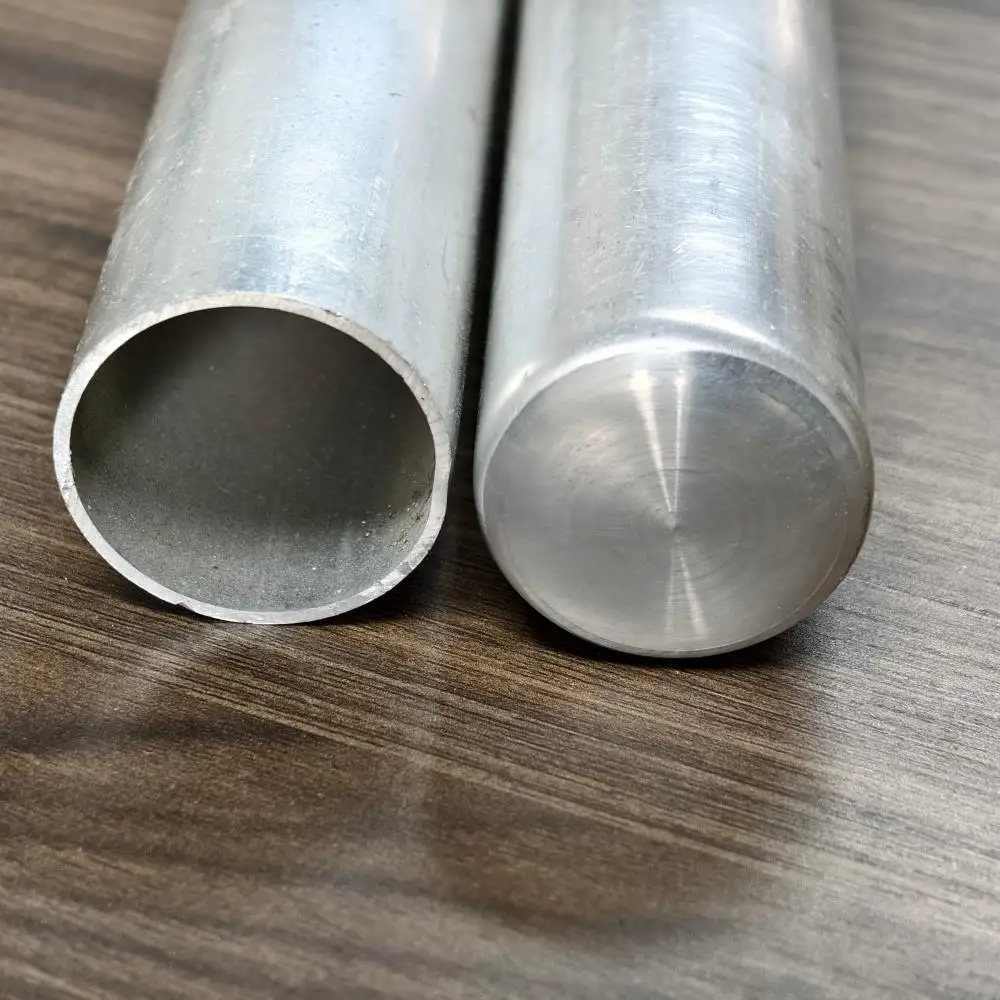

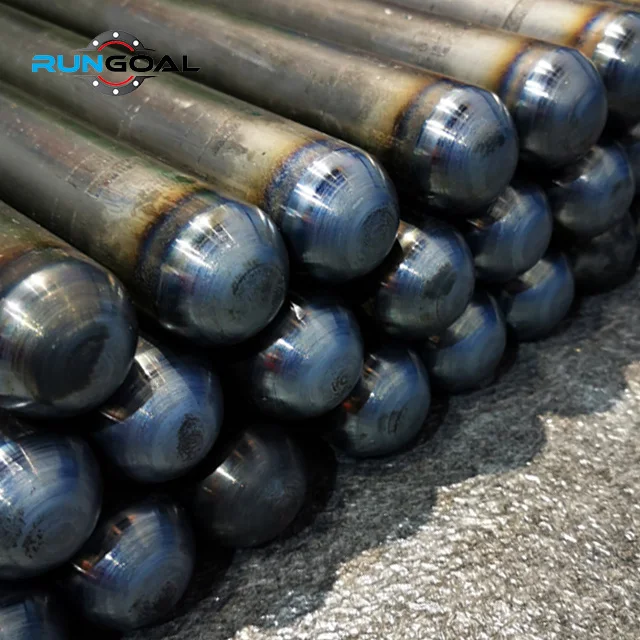

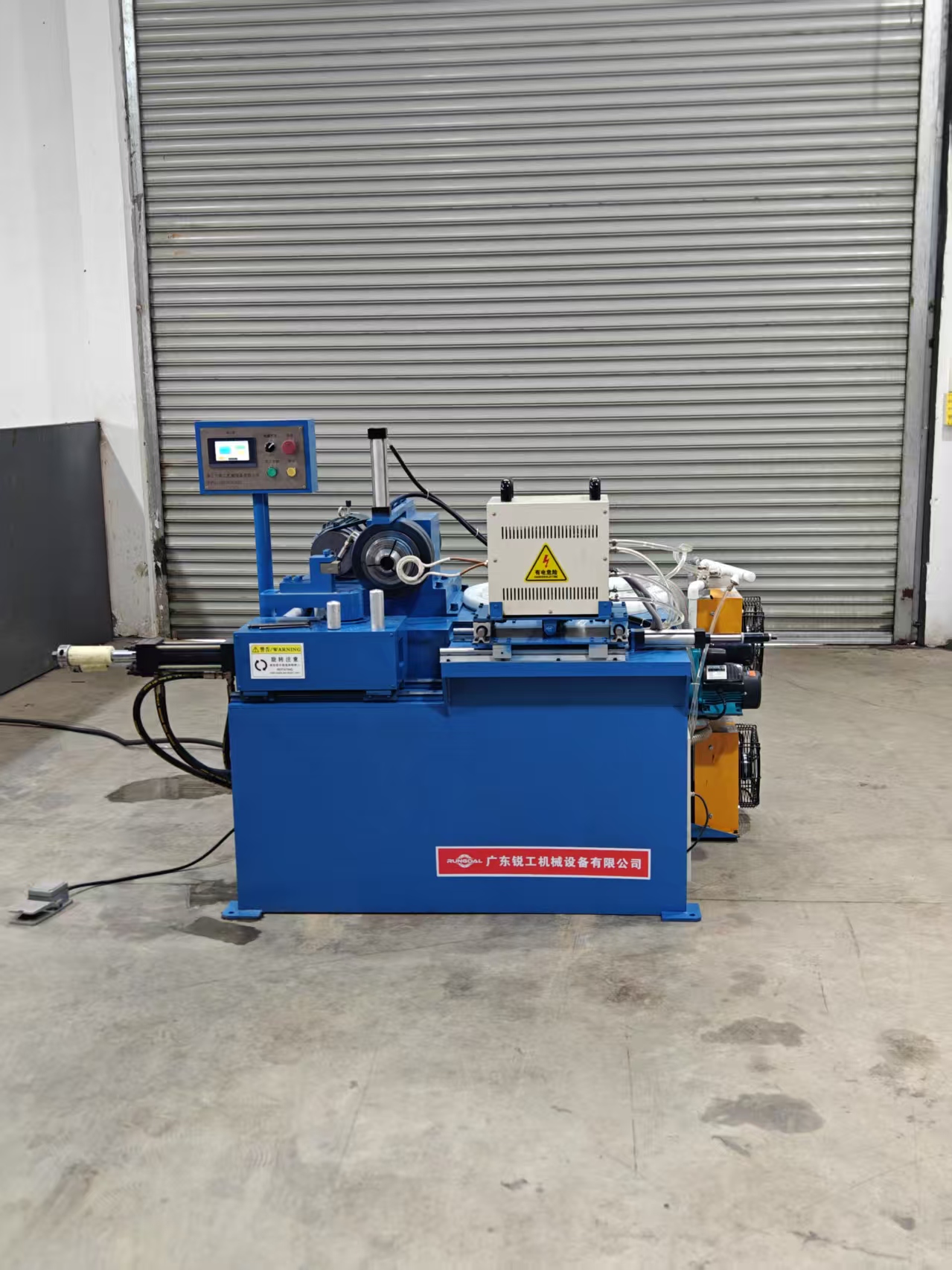

High frequency induction tube sealing machine is special equipment for metal pipe end forming and sealing, equipped with PLC touch control system, independent HF heating generator and spinning mold. This manual loading/unloading model automatically completes clamping, induction heating, spinning sealing and demolding after manual pipe feeding. It can melt and press steel, stainless steel, aluminum and copper tube ends into hemispherical, round or flat sealed heads, replacing traditional flame and resistance heating, featuring fast heating, crack-free & leak-proof smooth finished tubes.
Machine Model |
70 |
| Processing Diameter Range(mm) | 12mm-70mm |
| Max Pipe Loading Length(mm) | 1500 |
| Pipe Processing Thickness(mm) | 0.5-3.0 |
| Processing Speed(S/Piece) | 10-20 |
| Machine Weight(Kg) | 1200 |
| Machine Size(mm) | 1900*1200*1500 |
| Total Power | 33Kw |
Our After Service:
•Test the sealing machine before shipment
•Provide installation service, according to customer needs;
•Training service: teach customers how to use the machine 4 Assistance service:
1.Improve products quality;
2.Improve production capacity;
3.Reduce production cost;
4.Reduce warehouse storage
