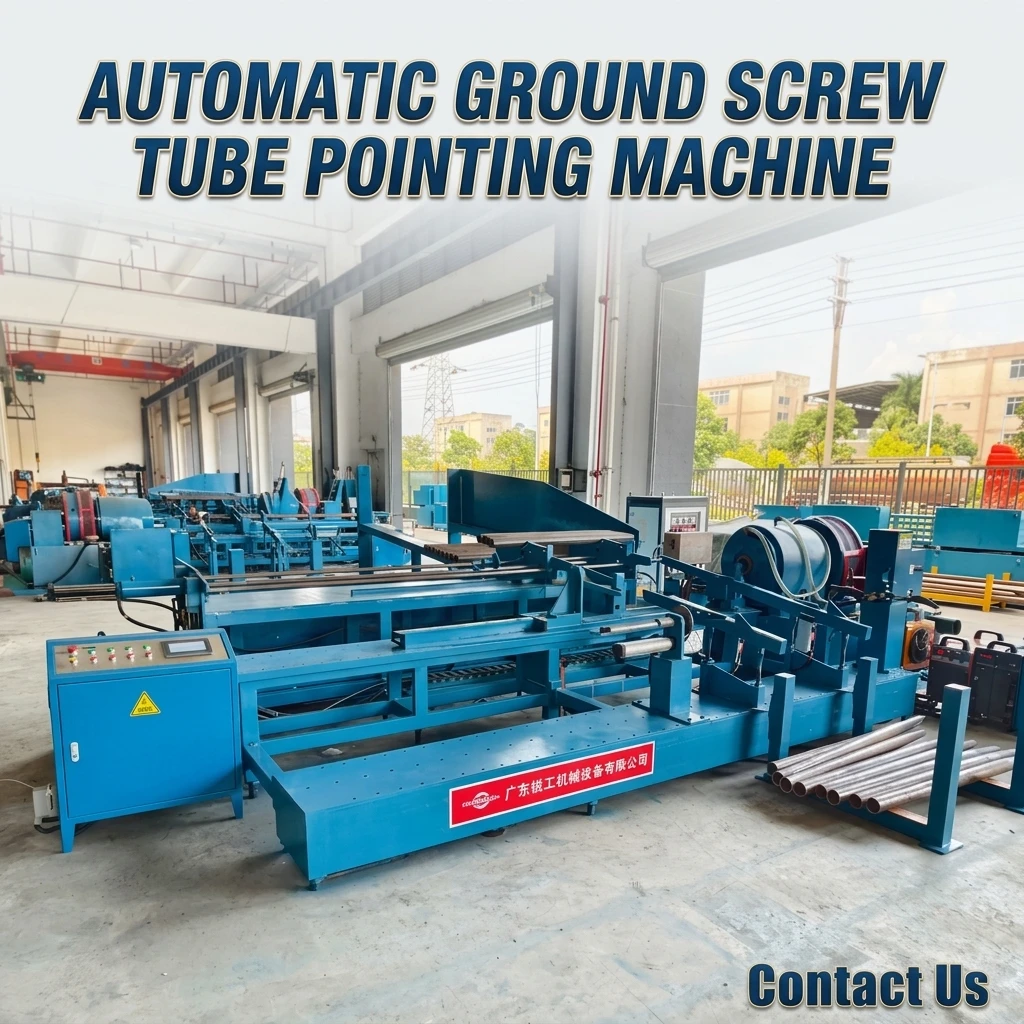

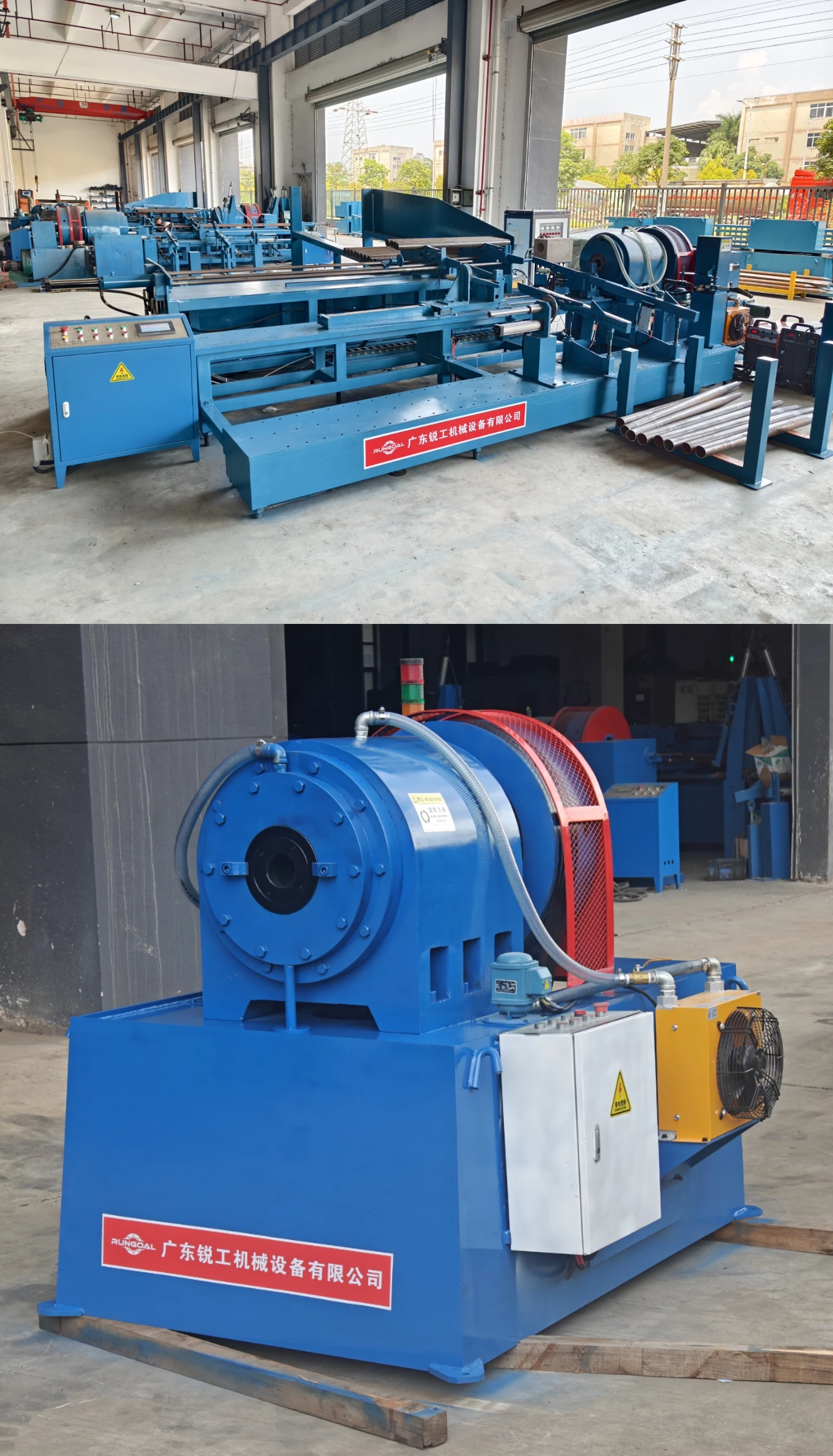

Automatic Ground Screw Tube Pointing Machine
Brief Introduction of Ground Screw Pointing Machine
RUNGOAL Full-Automatic Ground Screw Tube Pointing Machine also know as pipe tapering machine or pipe cone machine is a special kind of pipe cold forming machine.In other words, rotary swaging is designed as a cost-efficient alternative to traditional metal forging and machining operations.The function by using four die rotary hammering mechanisms to taper a tube to its final form. As the tube is fed into the machine automatically driven by hydraulic, it will be swaged by the dies to taper it into the desired form, which will be set according to the specifications on the control mechanism. What's more the tube loading is also fully automatic, whole bundle tube put on magazine loader and the whole process is automatically working. By applying German advanced technology and good mechanism & electrical quality controlling, machine with extremely advantage of low noise. Full-automatic rotary swaging solution for high productions and labor force save.
Features of Ground Screw Tube Pointing Machine
•Operation panel offers easy operation of pipe making machine.
•Machine featured as automatic pipe loading in magazine loader, automatic pipe feeding into machine, automatic rotary swaging.
•All the parts are made under very strict quality control, so the quality of machine is in high level and the specification is standardized.
•A high quality tapering machine will use tools that move the dies in and out, offering as many as 3000 blows per minute to hammer the tube into the desired shape.
•The thickness of the pipe and the strength of the material to be tapered will also impact how the materials should be prepared to create a clean tapered edge.
•Available pipe material: steel, stainless, aluminum, titanium and brass...The design of the tooling help customer easy to change.
•Very Low noise during working: 75-85db.
•CE&ISO 12100:2010

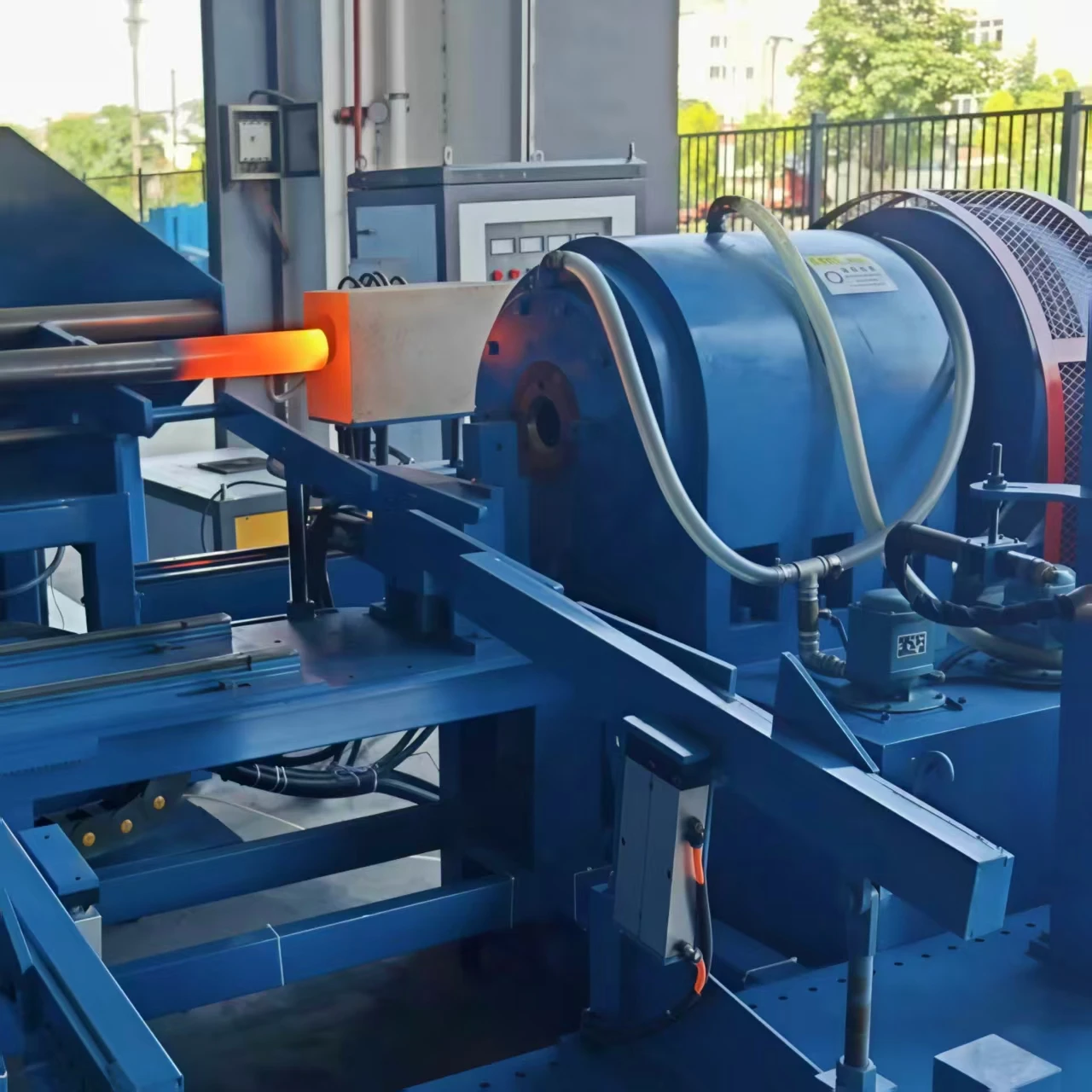

Step 1:
Use high frequency induction heating machine to heat the end of the pipe in order to better pointing when rotary swaging treatment.If you buy our automatic ground screw tube pointing machine,the high frequency heater is includeed

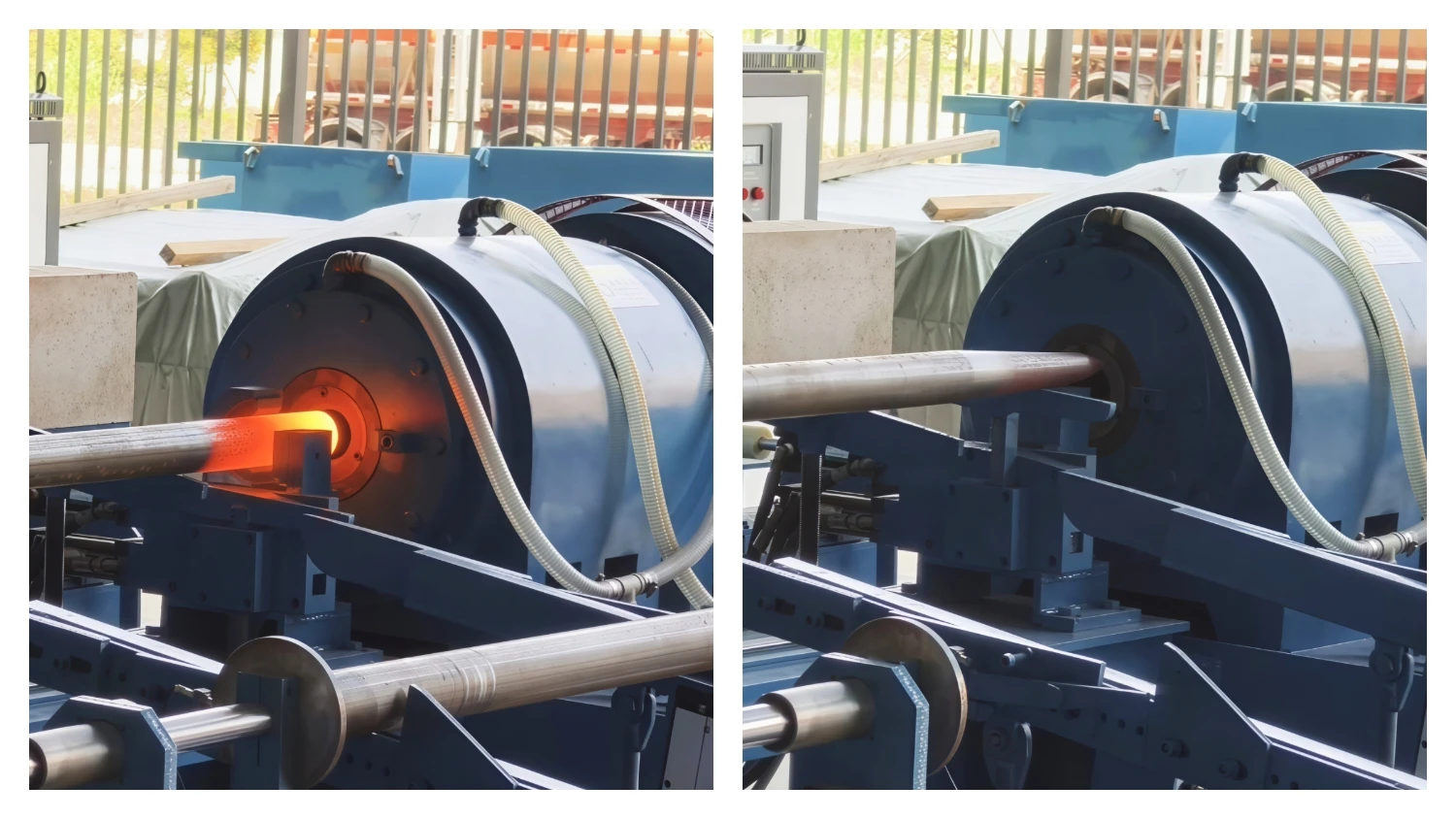

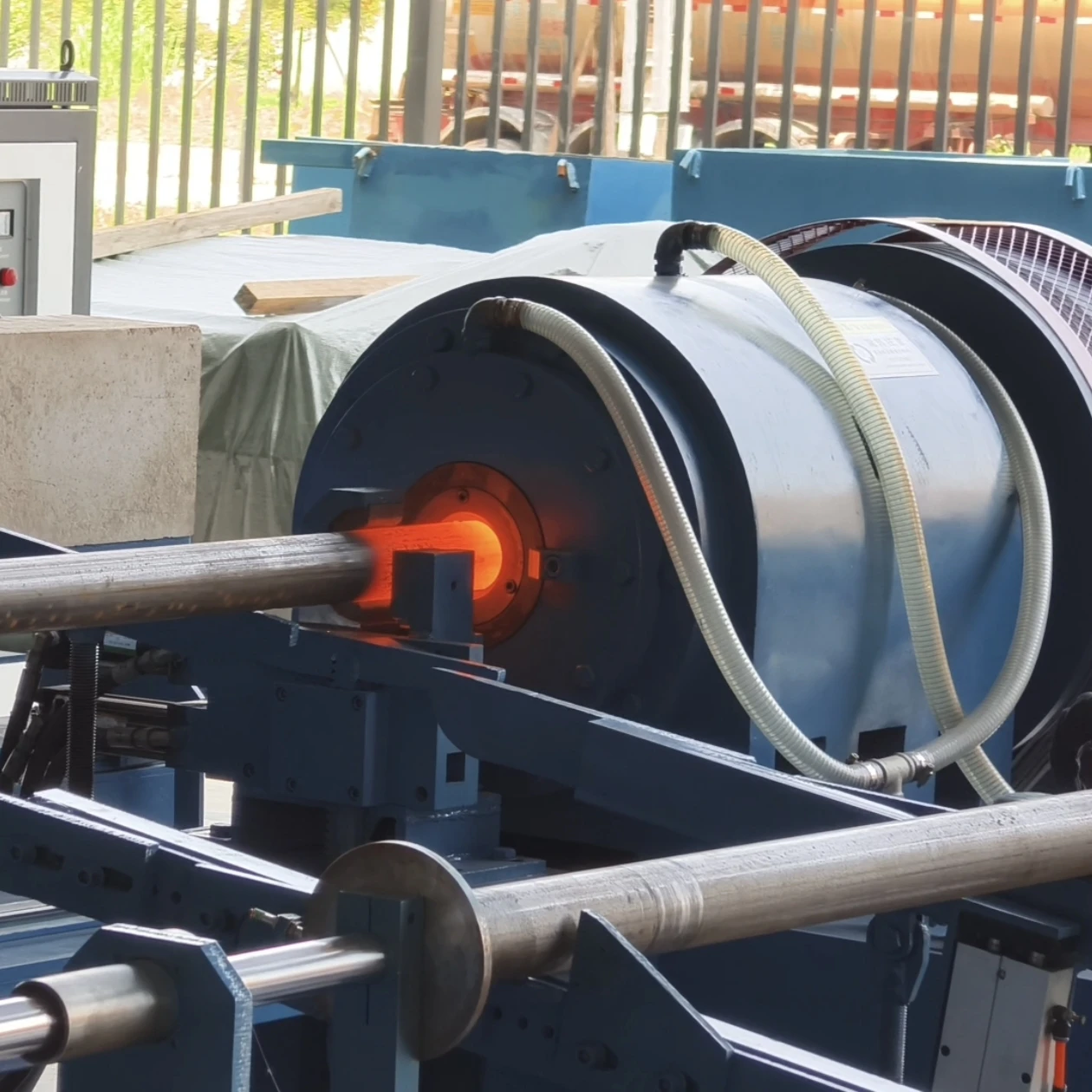

Step 2:
After the pipe is heated, it is pushed by an automatic device to the main machine for tapering treatment. Its principle is to utilize the specific shape of the mold inside the machine and the pressure generated by the machine's rotation to gradually taper the front end of the pipe.

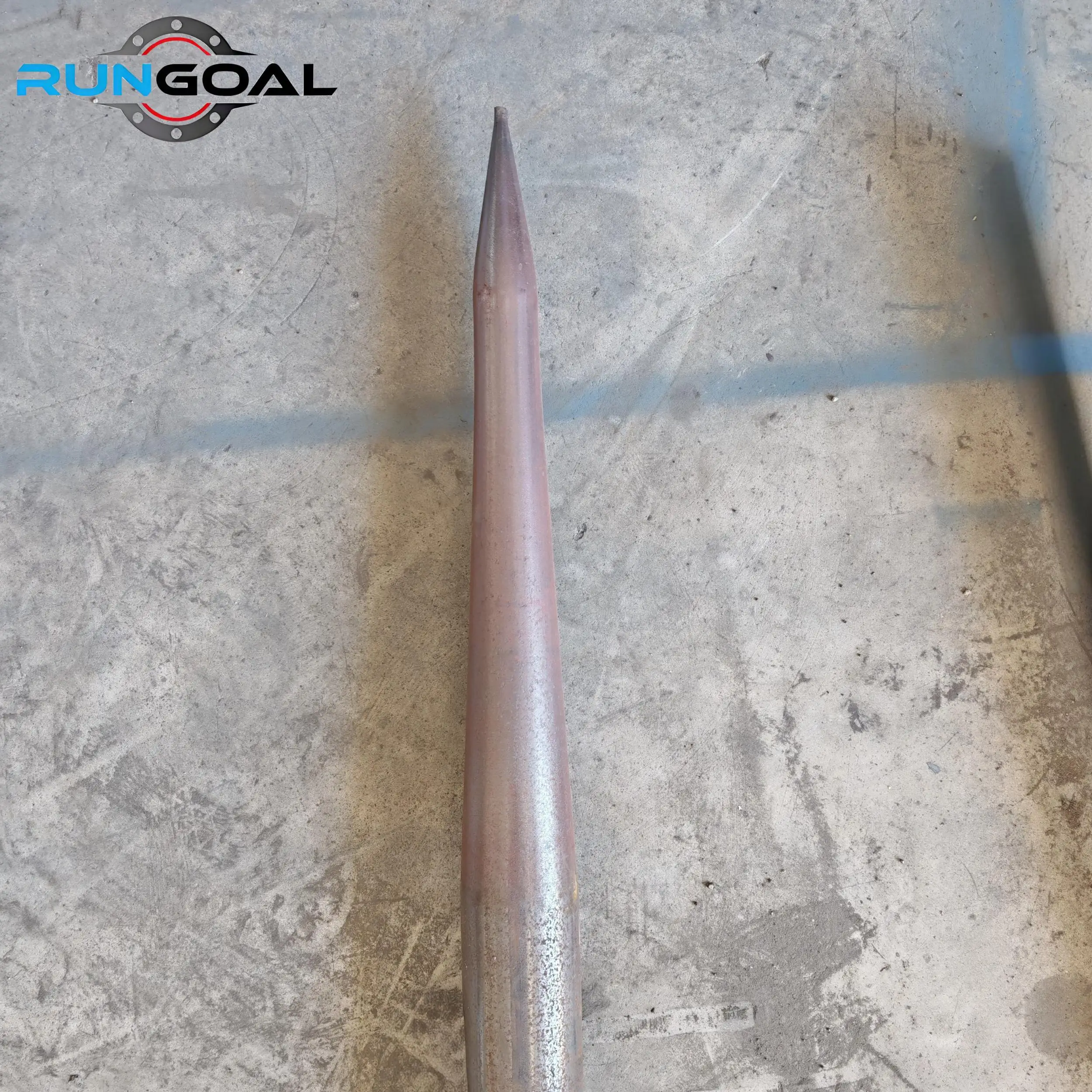

Step 3:

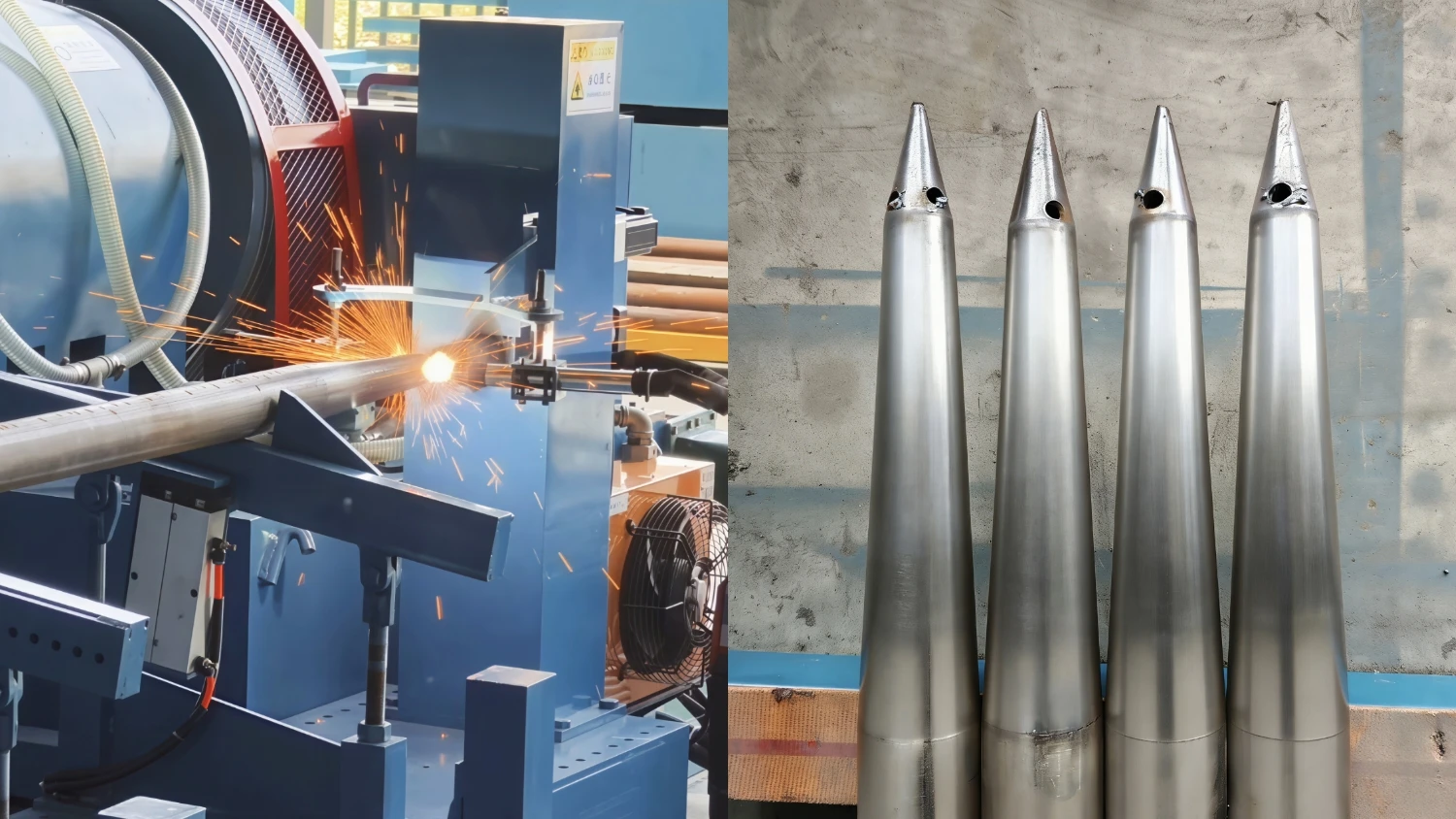

After the pipe has undergone tapering, it falls into the plasma cutting machine below, which drills holes in the tapered tip to allow the drainage of zinc liquid during the subsequent galvanizing process.
| Type | 90 Model | 140Model | 170Model |
| Max Pipe Processing Diameter | 90mm | 140mm | 170mm |
| Max Pipe Processing Thickness | 6mm | 6mm | 6mm |
| Machine Size(m) | 7*6.3*1.9 | 7*6.3*1.9 | 7*6.3*1.9 |
| Weight(Kg) | 8000 | 8500 | 9000 |
| Total Machine Power(Kw) | 145 | 160 | 160 |
| Max Taper Length | 400mm | 400mm | 400mm |

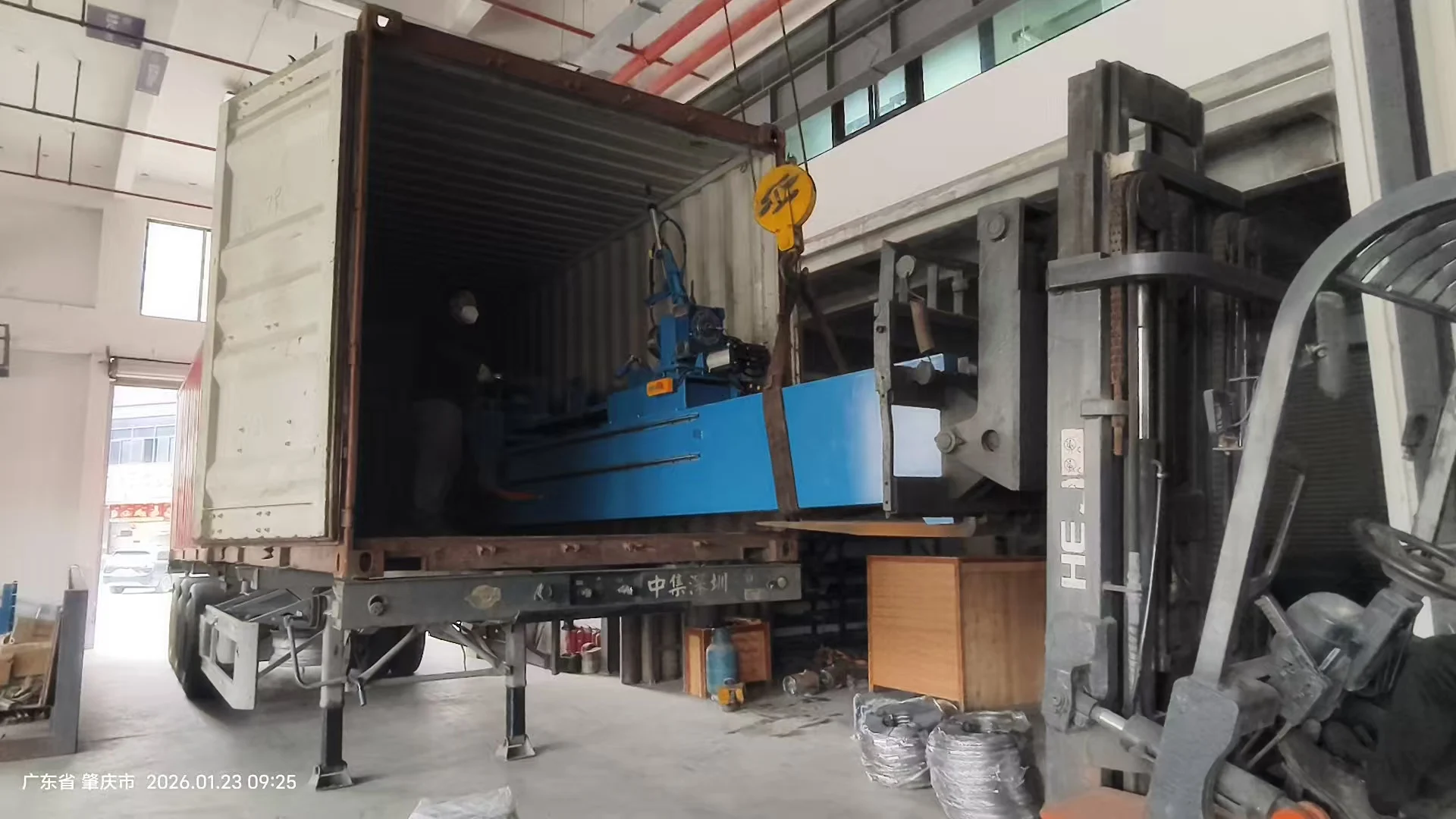

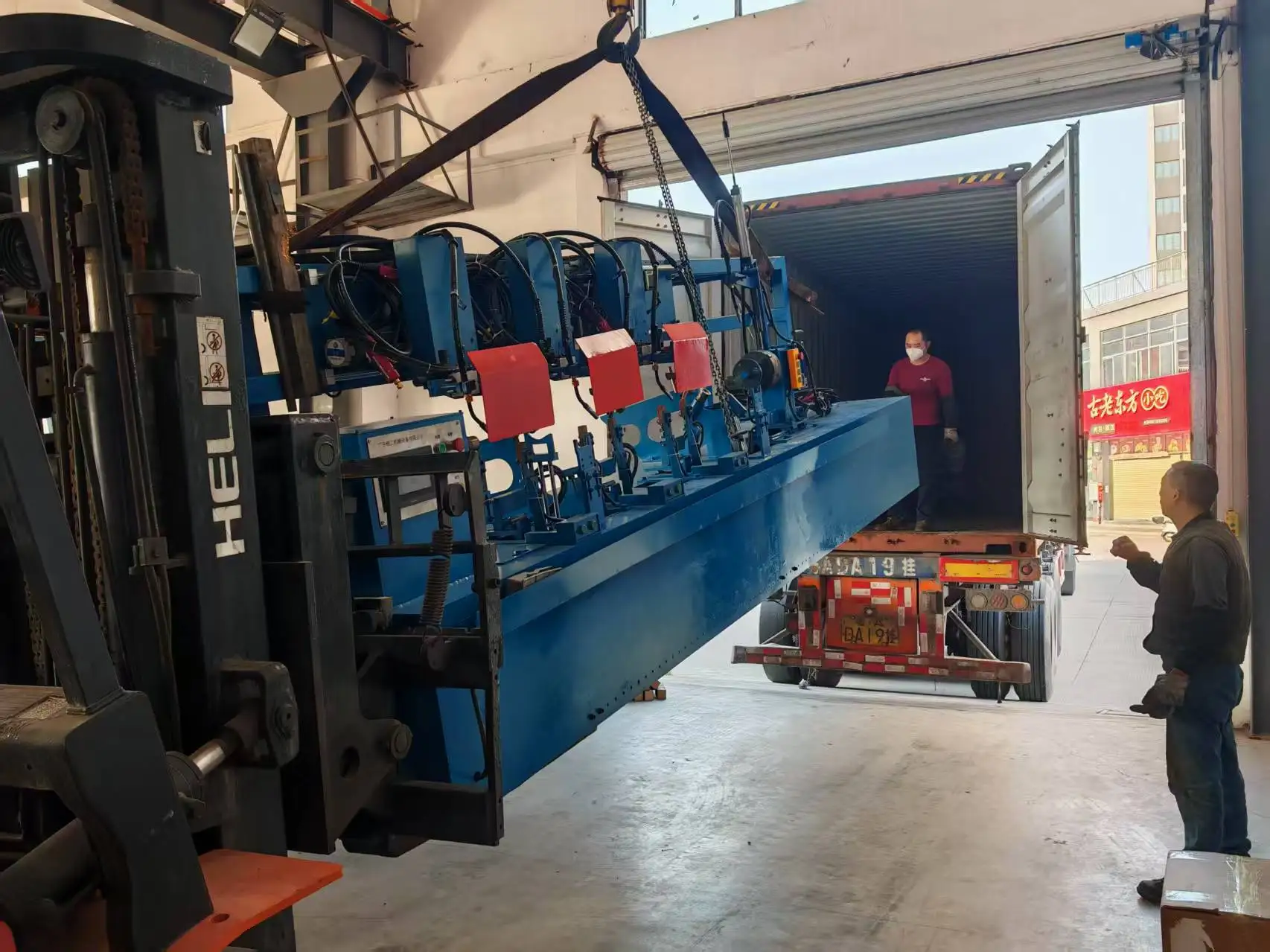

• We use container to ship the ground screw making machine;
• In addition, used shockproof film to protect the main motors.
• We use the container to deliver goods to our customer. Generally speaking, we start at Shenzhen or GuangZhou port, but we also can start at other port according to customer's need.
About Company:
Our After Service:
•Test the tube pointing machine before shipment
•Provide installation service, according to customer needs;
•Training service: teach customers how to use the machine 4 Assistance service:
1.Improve products quality;
2.Improve production capacity;
3.Reduce production cost;
4.Reduce warehouse storage
